Design + Engineering · Collective housing

NEO-TULOU

An integrated housing-design study developing collective living spaces for Hong Kong through urban analysis, annual daylight simulation, energy modeling and HVAC comparison.

The courtyard organizes collective life while façade and systems studies inform the design.
Diagram in text
City edge
Open ground connections to the neighborhood.
Shared courtyard
Organize terraces, circulation and amenities.
Private units
Arrange dwellings around the collective interior.
Test the façade
Compare daylight, solar exposure and envelope.
Compare services
Evaluate HVAC options and coordinate ventilation.

Interactive tools

  • NEO-TULOU performance explorer

    Explore recorded design alternatives, filter the trade-offs, inspect the source figures, and compare energy, daylight, operating cost and carbon.

Approach and contribution

30-second case brief

The project at a glance.

Question
One integrated co-living project, from urban and social strategy to daylight, energy, HVAC, envelope, and construction details.
Responsibility
Collaborative design development, performance analysis, system comparison, and representation
Methods
Urban analysis · daylight · energy · comfort · HVAC comparison · detailing
Result
Integrated design and performance study · Daylight, comfort, energy, and HVAC comparison

Project scope and responsibility

Context
Politecnico di Milano · Architectural Design and Building Performance studios
Role
Collaborative design development, performance analysis, system comparison, and representation
Setting
Hong Kong · Dense subtropical context
Methods
Urban analysis · daylight · energy · comfort · HVAC comparison · detailing
Team
Nine-person multidisciplinary studio team

NEO-TULOU · interactive explorer

Design decisions, connected.

Explore the relationship between the building you see and the performance behind it.

Open full workspace

Overview

NEO-TULOU reinterprets the collective logic of the Chinese tulou for a contemporary co-living community in Hong Kong. The project combines a porous perimeter, a shared courtyard, private units, collective amenities, vegetation, and public connections. The architectural and performance work belong on one page because each environmental decision responds to a spatial idea.

Urban strategy

The proposal responds to a dense urban context by opening the courtyard block to surrounding movement rather than reproducing a closed historical type. Permeable ground connections, vertical circulation, public-facing programs, and landscape turn the perimeter into an interface between the co-living community and the city.

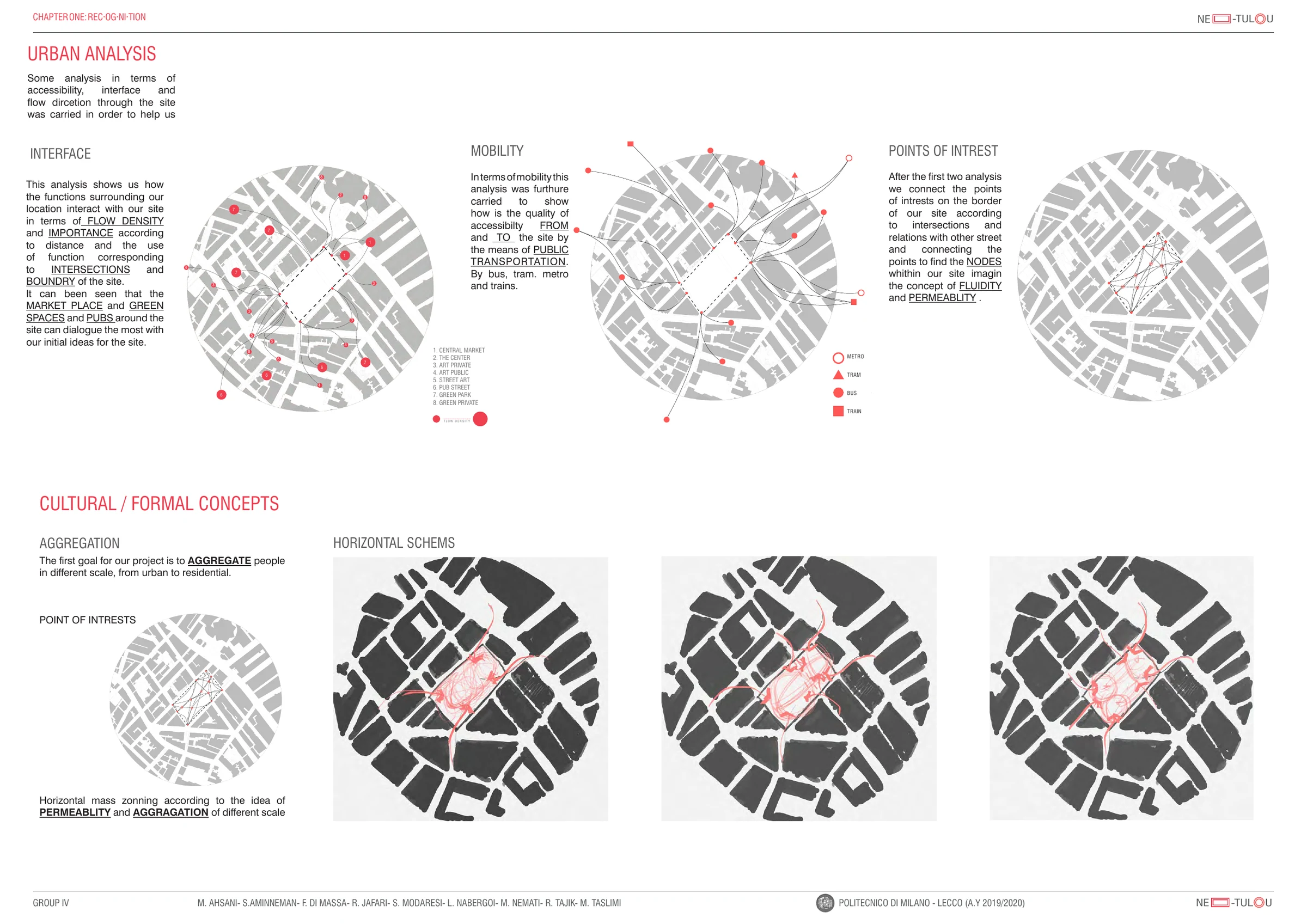

Urban connections reshape the tulou type into an open and permeable part of the city.

Housing and shared life

Private units are organized around a collective interior world of circulation, terraces, amenities, and vegetation. The courtyard becomes the project’s social center and its primary orientation device, creating a sequence from the city to shared space and finally to the dwelling.

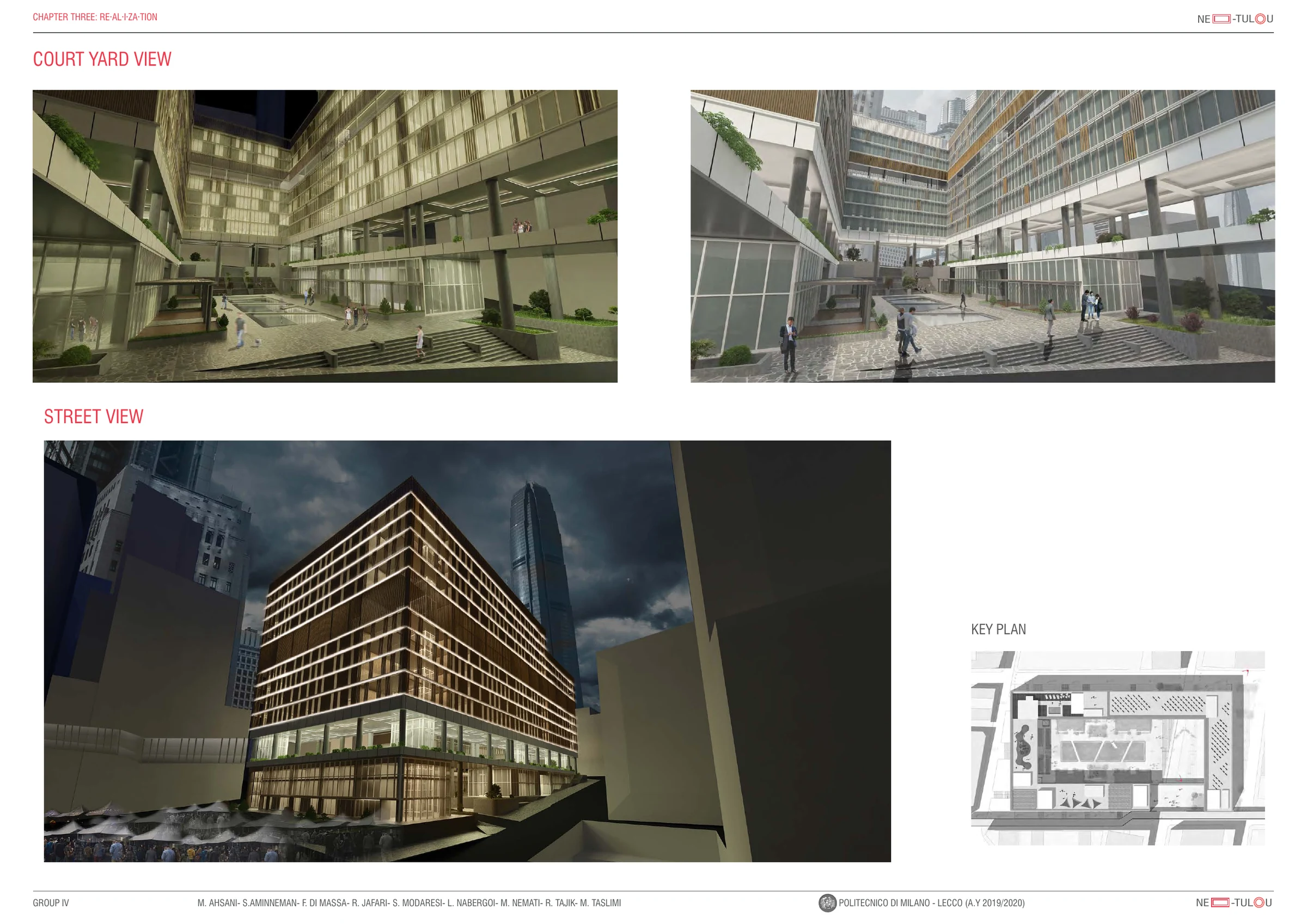

Shared circulation, amenities, and planting create a collective interior world.

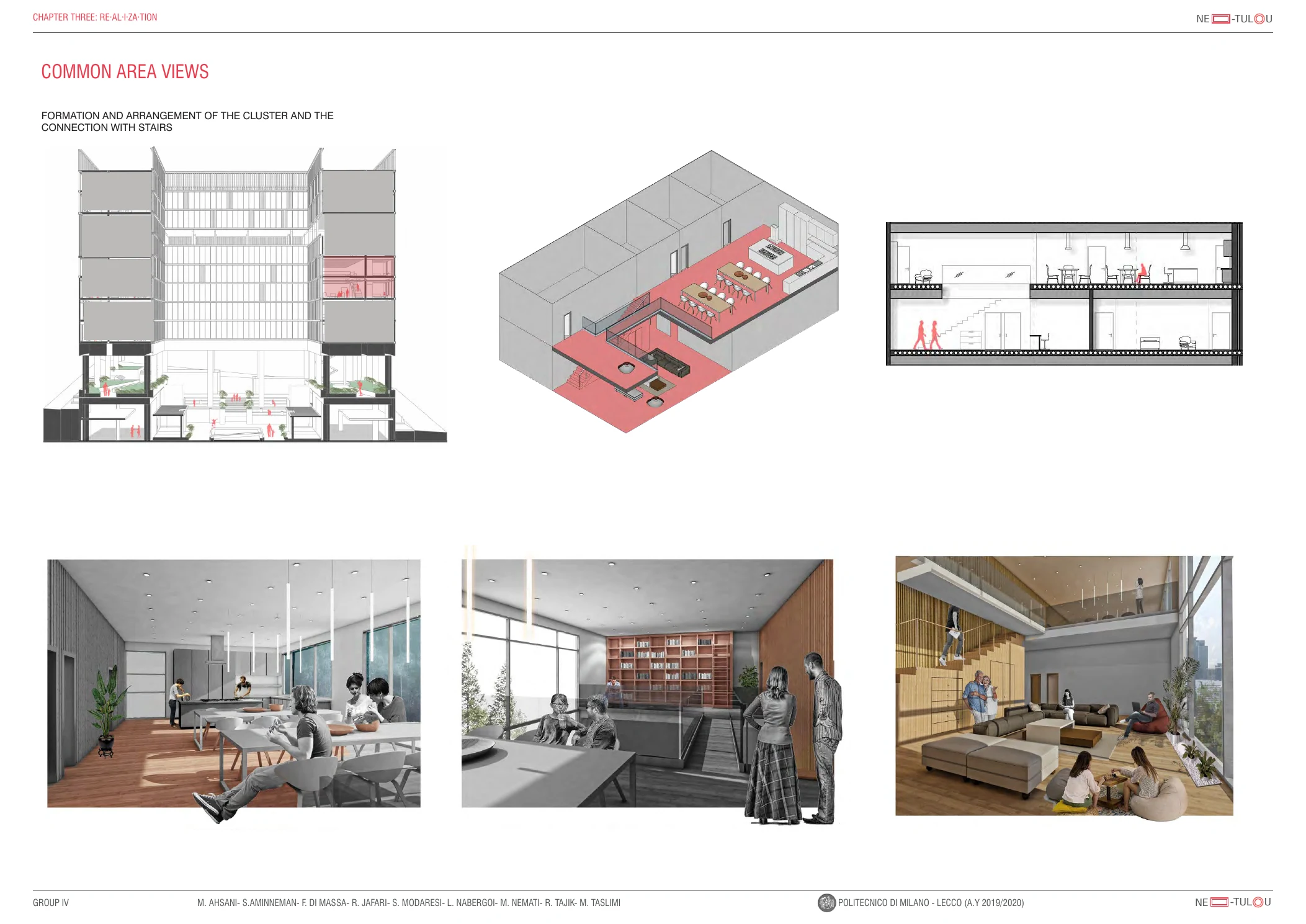

A cutaway and lived views show how the collective interior links circulation, gathering, planting, and private rooms.

Daylight

Massing, glazing, and shading alternatives were tested with daylight metrics including spatial daylight autonomy and annual sunlight exposure. The studies make visible a central trade-off: opening the perimeter and courtyard can improve access to daylight, but solar exposure and glare must be controlled. The selected direction coordinates geometry, façade transparency, and shading rather than treating daylight as a late-stage check.

Massing, glazing, and shading studies reveal trade-offs between useful daylight and solar exposure.

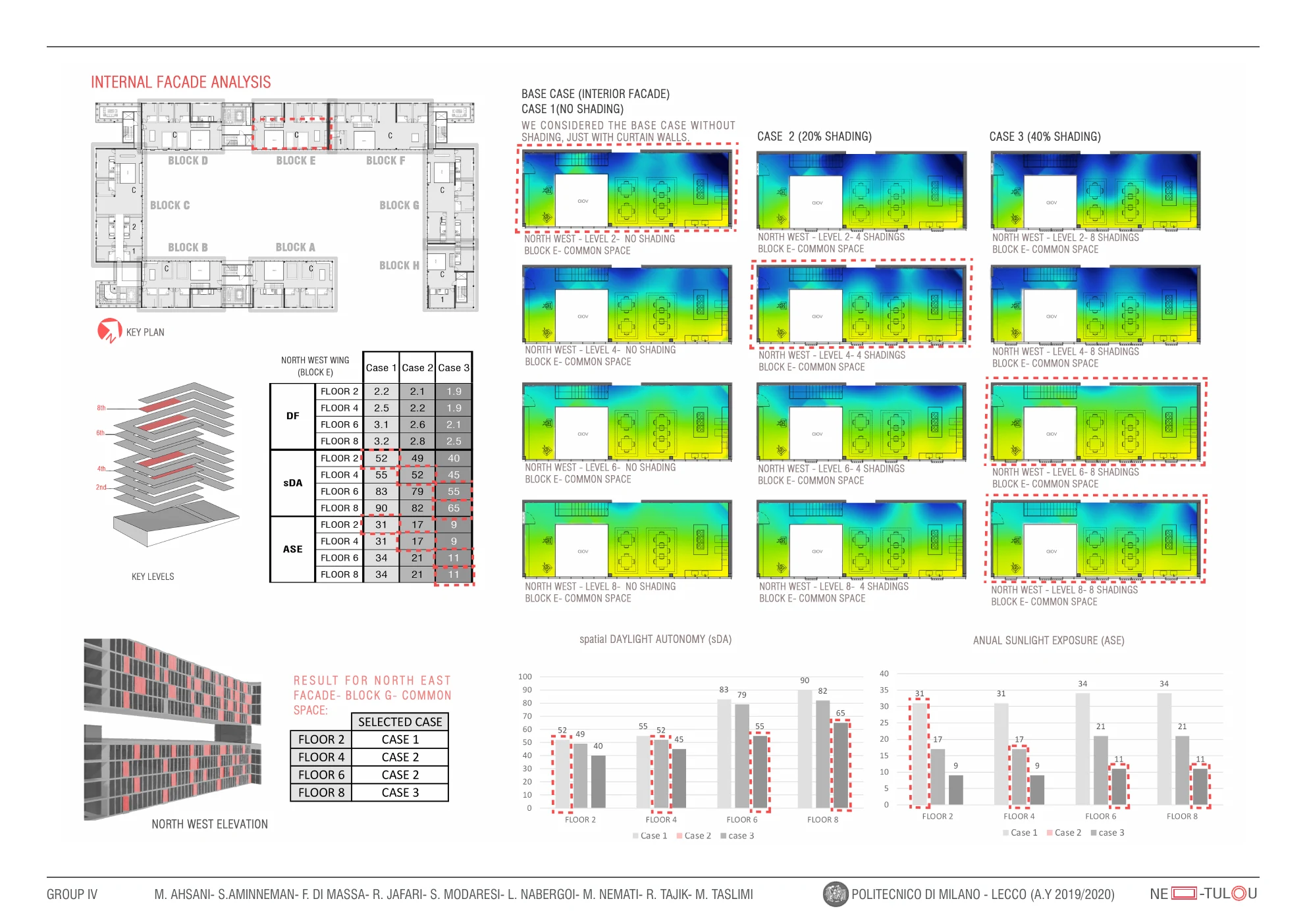

Internal-façade options are compared through sDA and ASE, making daylight access and solar-exposure trade-offs explicit.

Energy and envelope

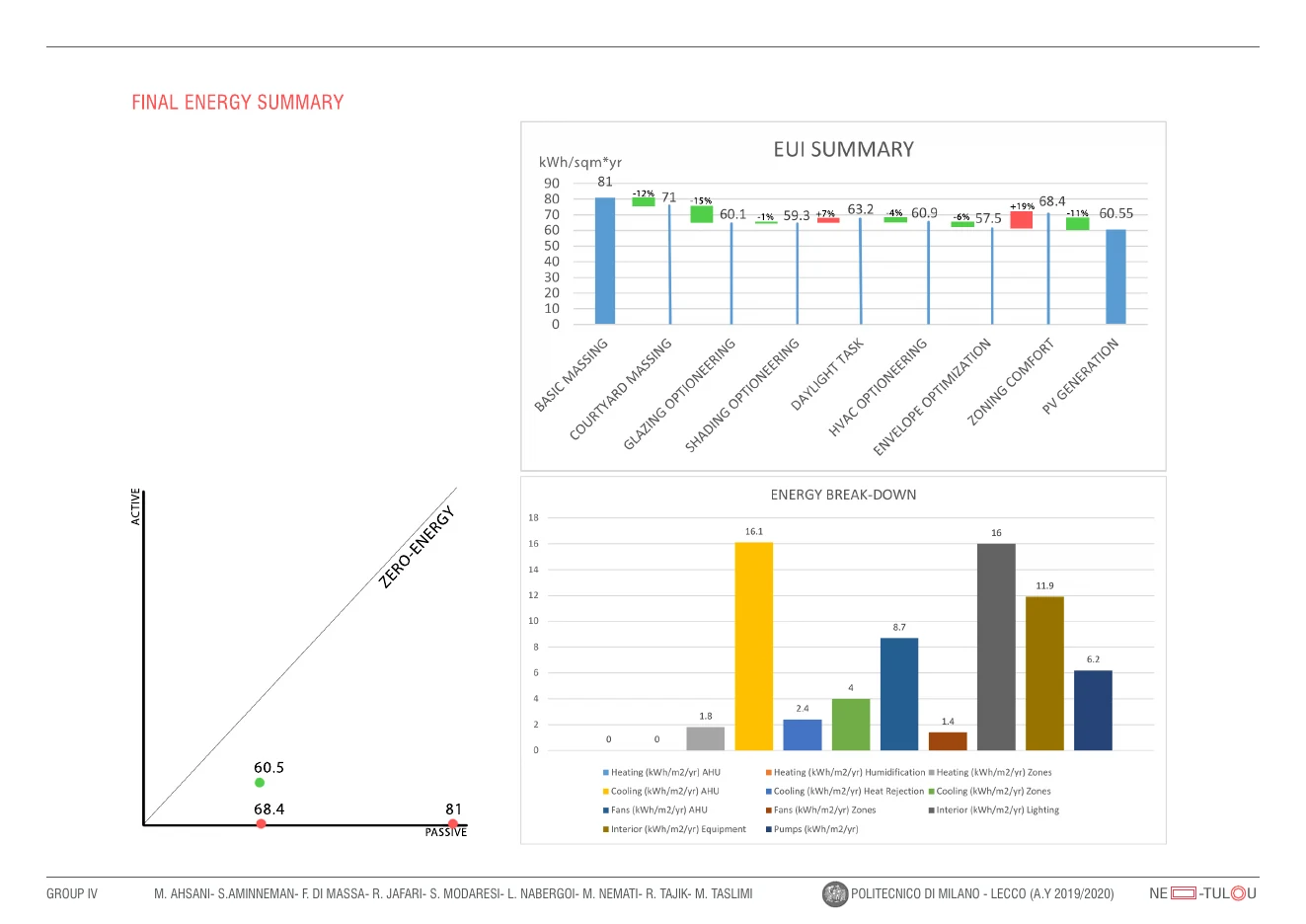

The performance study used an ASHRAE 90.1 climate-zone 2A framework and examined façade-specific glazing properties, schedules, loads, and envelope alternatives. Response curves informed U-value and solar-heat-gain decisions, while a staged envelope-optimization process tested how thermal improvements affected both energy use and comfort. Results remain tied to the modeled assumptions.

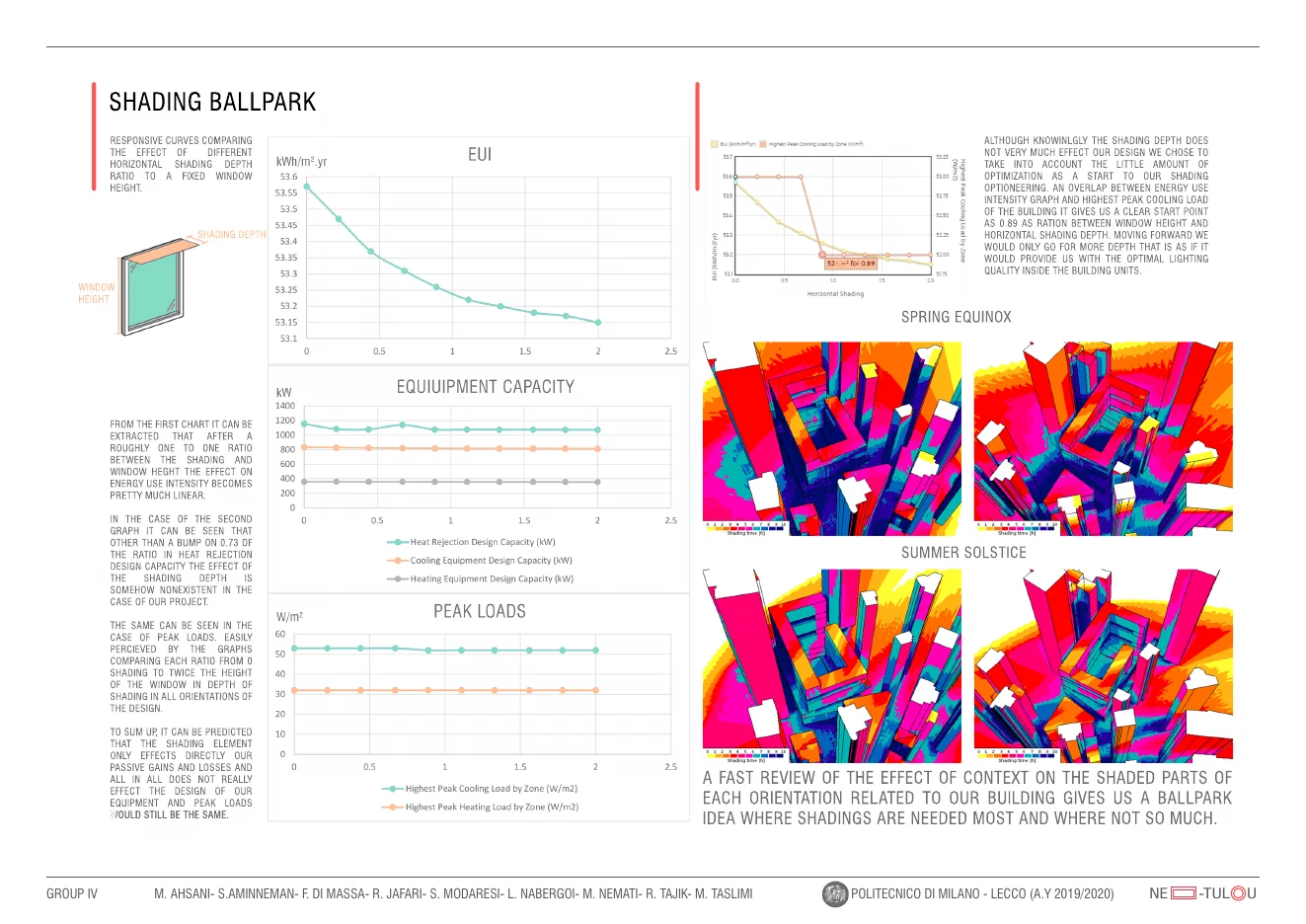

Envelope and system studies tie performance decisions to modeled assumptions.

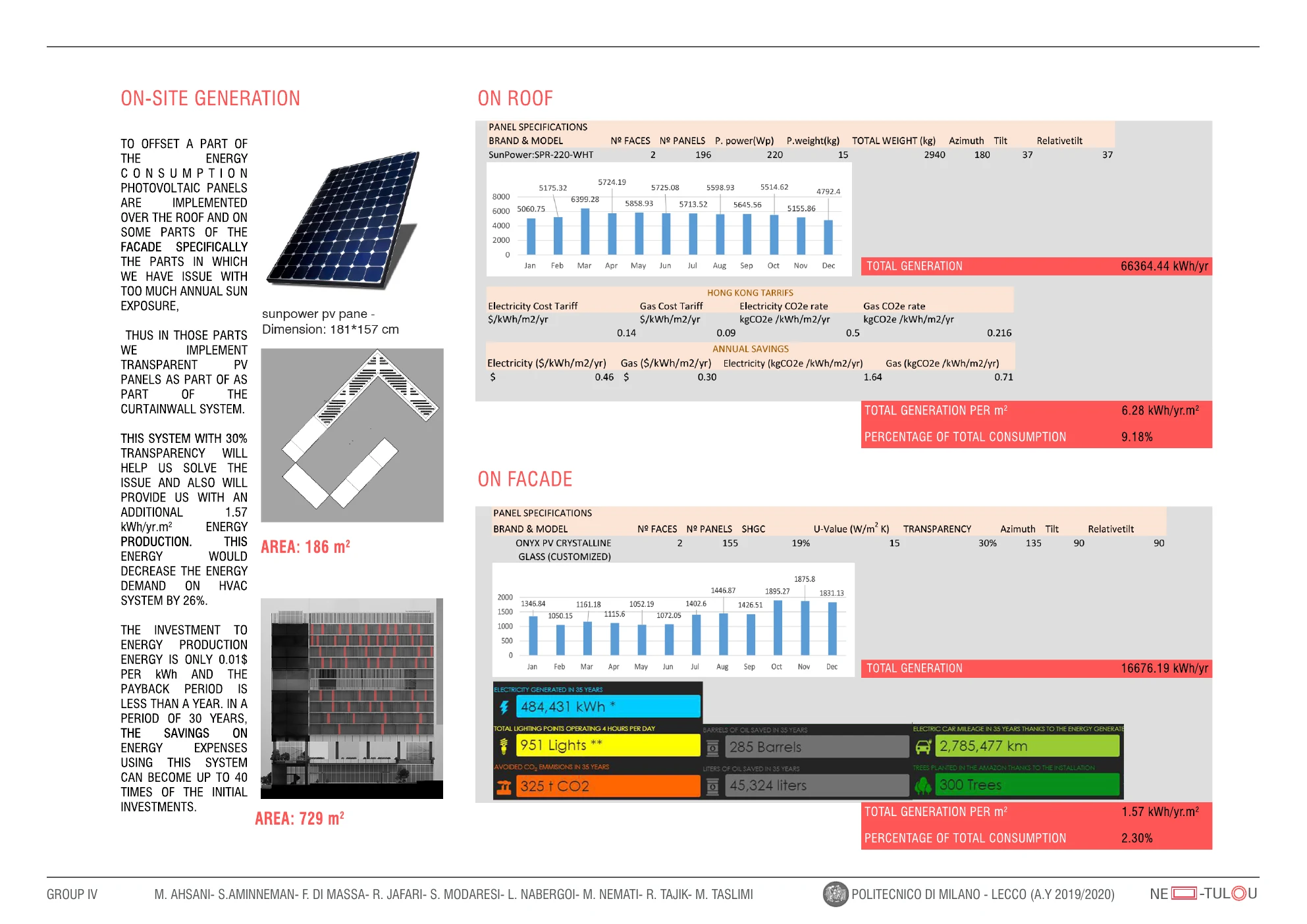

The building-performance study tests on-site generation as part of the project-wide energy balance.

HVAC and comfort

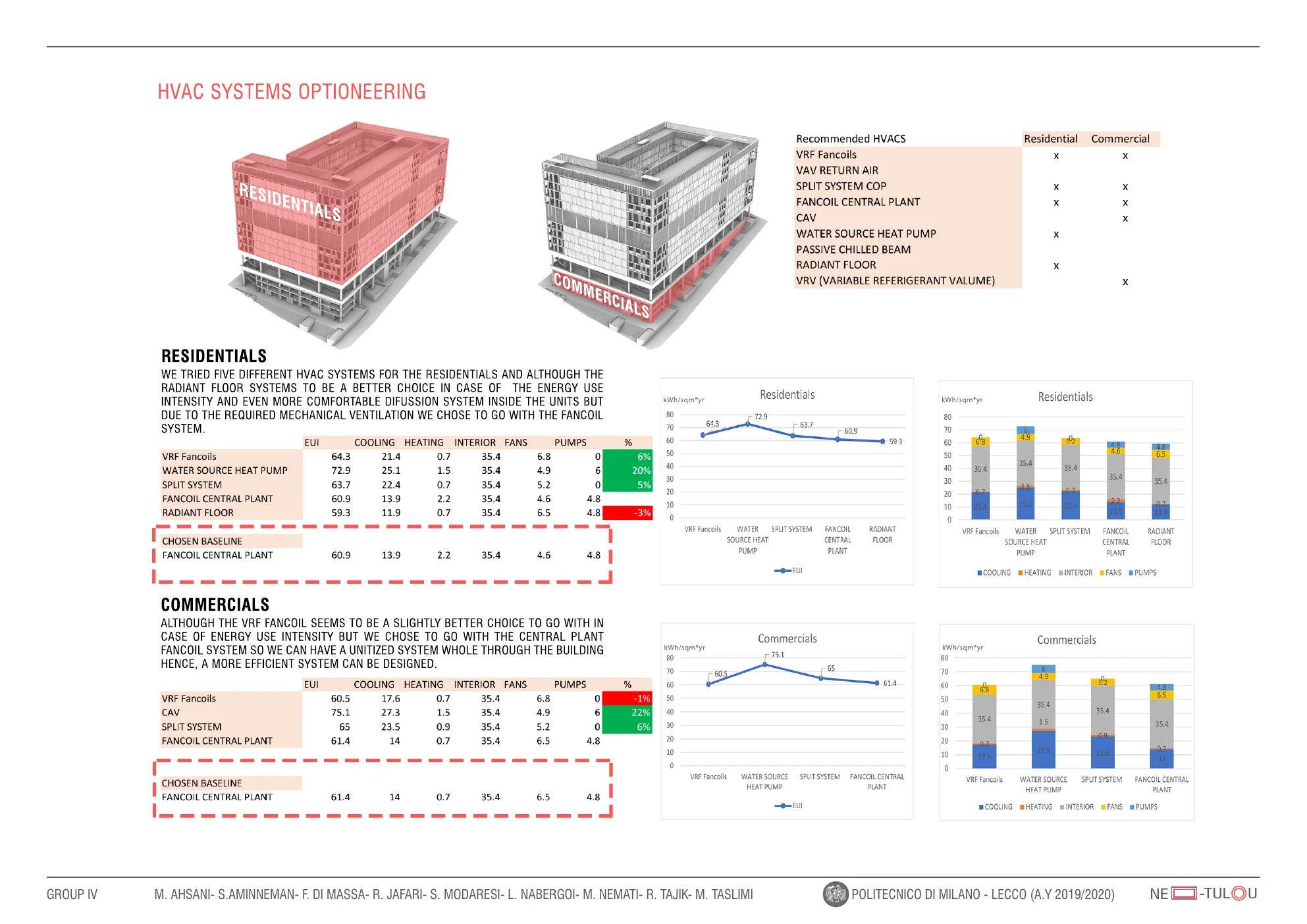

Five residential HVAC options were compared. Radiant floor systems performed well for energy-use intensity and comfort, but the project also required mechanical ventilation; the coordinated scheme therefore selected fan coils served by a central plant. Comfort studies compared active systems with passive behavior and acknowledged Hong Kong’s heat, humidity, and odor constraints on natural ventilation.

System optioneering compares comfort, ventilation, and energy implications before selecting a coordinated scheme.

Envelope and technical details

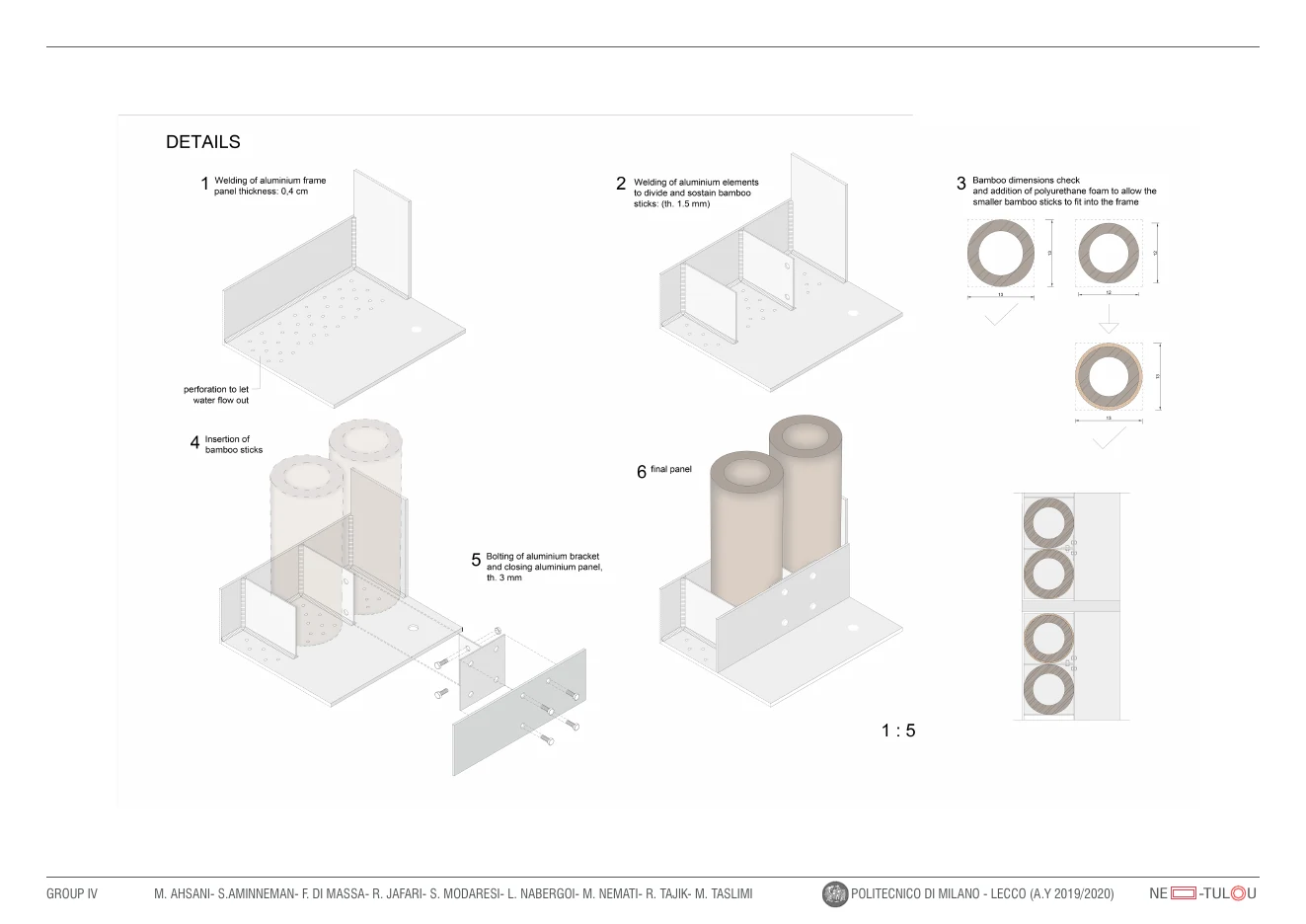

The technical package resolves the architectural expression through façade fixings, bamboo screens, insulation, airtightness, curtain-wall and operable-window assemblies, parapets, roofs, intermediate floors, and junctions. Cropped details reveal the relationship between the screen, weather barrier, thermal layers, structure, and interior finish.

Construction details translate the architectural envelope into buildable layers and junctions.

Outcome and credits

The result is an integrated academic proposal in which the courtyard operates as both a social space and an environmental device, while the envelope and services respond to the local climate. The nine-person team developed the work collaboratively; Ramyar contributed to architectural development, performance analysis, system comparison, and representation.

The complete project record

Full book

Read the complete report, thesis, or presentation here. Use the page controls to explore the original figures and methods.

Download PDF Open full PDF

Full technical book · Systems, energy, daylight, and construction

NEO-TULOU - Sustainable Building Technologies

The original document, page by page.

The reader loads when you open the book.
