Control daylight from inside the room.

Move the sun, set the glare response, and tune shade transparency. This demonstrator explains the control relationships; values are illustrative.

Current responseBalanced daylight control

Venetians 49% closed · Roller 47% deployed

Interior viewpointModerate incoming light

A home office with competing needs

Keep useful daylight while controlling direct sun

A large window can make a home office bright and inviting, but the same opening can admit direct sunlight onto a desk, create glare in the occupant’s field of view, and change the heating and cooling demand. Closing a blind solves one problem while potentially creating another: less daylight, more electric lighting, or a reduced view outside. This project approached those competing effects as one design and control problem.

The case was a third-floor home office in Lecco, Italy, with a southwest-facing exterior wall and two tall windows. The room measures 3.8 × 4.6 × 3.0 m, with approximately 7 m² of glazing. The objective was to develop a retrofit that could respond to the sun and the occupant rather than relying on a single fixed shading position.

The actual home-office plan establishes the window arrangement and the occupied space used throughout the simulations.

Final thesis · p. 43 (PDF p. 54)

Open full-size figure

Develop the façade and its operating logic together

As project lead, I developed the parametric model, simulations, optimization, preference model, control implementation, and the results and discussion. I received support with the literature review and parts of the NSGA-II methodology. The thesis and published article retain the full collaborator and coauthor credits.

The resulting concept combines exterior Venetian blinds over the upper part of the opening with an interior roller over the lower part. Slat rotation controls the upper zone, while roller deployment controls the lower zone. This division provides separate responses to direct sunlight, diffuse daylight and glare. The development therefore needed to establish both a suitable physical configuration and a rule for deciding how it should operate.

The simulation model connects the actual room geometry to the work-plane daylight assessment.

Journal article · PDF p. 8

Open full-size figure

Constructing a common comparison model

Hold the case constant and change the shading

The room was rebuilt in Rhino and Grasshopper so the same geometry could drive daylight and building-energy analysis. Ladybug and Honeybee connected the model to weather and simulation inputs; Radiance provided the daylight calculations, while EnergyPlus provided the thermal and energy calculations. Each shading strategy was evaluated against the same case, making its performance a consequence of the shade configuration rather than a different room or envelope.

For the strategy comparison, the simulations sampled the 21st day of each month from 9 a.m. to 5 p.m., giving 108 hourly cases across the year. These common dates captured different seasonal sun conditions. The unshaded room served as the reference for the five-strategy comparison, and the later controller evaluation used February 21 and August 21 to examine the daily response in winter and summer.

  1. 01Rebuild the case

    Room, glazing, envelope and shading geometry in Rhino/Grasshopper.

  2. 02Simulate each candidate

    Daylight through Radiance; thermal and energy analysis through EnergyPlus.

  3. 03Compare the outputs

    Heating, cooling, lighting, useful daylight and probable glare.

  4. 04Resolve geometry and control

    NSGA-II trade-offs, preferred illuminance and responsive shade positions.

The same parametric geometry connects the performance comparison to the later optimization and controller.
Common case and comparison conditions
CaseThird-floor home office · Lecco, Italy · southwest façade
Room / glazing3.8 × 4.6 × 3.0 m · two 2.7 m-high windows · approximately 7 m² glazing
EnvelopeWall U-value 0.25 W/(m²·K) · window U-value 3.5 W/(m²·K)
Strategy comparison21st of each month · 09:00–17:00 · 108 sampled hours
Final controller comparisonFebruary 21 and August 21 · hourly daily profiles
Daylight / glareRadiance · published UDI band 150–1,500 lux · later directional DGP
Thermal / energyEnergyPlus through the Rhino/Grasshopper workflow

Case geometry and model inputs · final thesis pp. 43–45

Comparing five shading strategies

Separate the effect of each shading device

The first comparison tested five alternatives: the existing unshaded room (ST01), fixed exterior Venetian blinds (ST02), a dynamic interior roller (ST03), fixed Venetian blinds combined with a dynamic roller (ST04), and dynamic Venetian blinds combined with a dynamic roller (ST05). This sequence isolated what each device contributed before combining them.

Cooling, heating and electrical-lighting loads were evaluated separately. Blocking solar gains can reduce cooling demand but also remove useful winter gains; a shade that suppresses daylight can increase lighting demand. Looking at the three outputs together made those consequences visible instead of judging a configuration from one favorable metric.

The five configurations separate fixed exterior shading, dynamic interior shading and the fully dynamic combination.

Journal article · PDF p. 8

Open full-size figure

Read the seasonal loads, then the combined result

The cooling comparison shows the benefit of exterior protection during the warmer sampled periods. The heating comparison reveals the competing effect of reduced solar admission, and the lighting comparison shows when shading increases the need for artificial light. These plots explain why the choice could not be made from cooling demand alone.

Across the source’s sampled comparison, the fully dynamic combination offered an acceptable energy balance and retained the ability to change both devices. That flexibility was important for the next stage: the geometry and operating rules could be improved while keeping independent control of the upper and lower window zones.

Cooling load (kWh) across the 12 sampled dates. All five configurations use the same room and comparison conditions.

Journal article · PDF p. 18

Open full-size figure

Heating load (kWh) across the sampled dates shows the winter consequence of admitting or blocking solar gains.

Journal article · PDF p. 19

Open full-size figure

Electrical-lighting load (kWh) across the sampled dates reflects compensation when daylight falls below the lighting-control threshold.

Journal article · PDF p. 19

Open full-size figure

Select a balance of daylight and glare

The published comparison defined useful daylight as average illuminance between 150 and 1,500 lux. It also counted sampled hours above 3,000 lux as a probable-glare indicator. This early indicator provided a common screen for all five strategies; the later controller used the directional Daylight Glare Probability (DGP) calculation at the occupant’s viewpoint.

Reading the daylight and glare comparisons together shows why the choice needed to consider both outcomes. The study selected ST05 as a controllable starting configuration that allowed both devices to respond. The next question was which combination of slat dimensions and roller transmittance would improve its balance of energy, useful daylight and glare.

Useful daylight uses the publication’s 150–1,500 lux band. Percentages summarize the sampled occupied hours; the final column aggregates the sampled dates.

Journal article · PDF p. 20

Open full-size figure

The early glare indicator counts sampled hours with mean illuminance above 3,000 lux. It is distinct from the directional DGP used in the controller.

Journal article · PDF p. 21

Open full-size figure

Finding the geometry through optimization

Turn four physical properties into search variables

With ST05 selected, I parameterized four properties: roller visible transmittance, slat width, the distance from the topmost Venetian slat pin to the bottom slat pin, and the number of slats. Changing these inputs rebuilt the shade geometry and reran the performance calculations. The roller’s transmittance was particularly important because it had to control glare while still admitting useful daylight.

Wallacei applied NSGA-II within Grasshopper to search combinations of those variables. Rather than assigning one arbitrary score to every design, the search compared competing performance objectives. A Pareto-front solution represents a trade-off: improving one objective would require giving up performance in another.

Search variables and selected Pareto design
PropertyTested valuesSelected
Roller visible transmittance30%, 45%, 60%, 75%45%
Slat width8, 12, 16, 20 cm16 cm
Topmost-to-bottom slat-pin distance50, 70, 90, 100 cm90 cm
Slat count4, 6, 8, 108

Article Tables 4 and 9 · final selected values

Refine the objectives to expose useful alternatives

The initial search treated cooling, heating, electric lighting, useful daylight and probable glare as five separate objectives. I then combined the three energy terms into a primary-energy objective, using the study’s conversion indices of 2.5 for cooling, 1.1 for heating and 2.5 for electrical lighting. The refined search minimized primary energy and glare while maximizing useful daylight.

The parallel-coordinate plots show how each candidate moves across three fitness-ranking axes: F01 is glare, F02 is illuminance and F03 is primary energy. Generation color progresses from light pink to dark blue, and the second plot overlays the Pareto-front solutions in black. These are the optimizer’s ranking scales. Reading the trade-offs alongside the Pareto set made the selection explainable: a practical compromise among energy, daylight and glare rather than an isolated minimum on one axis.

Figure 31 · all generations on the source fitness-ranking scales. F01: glare; F02: illuminance; F03: primary energy. Light pink marks early generations and dark blue later generations. The axes are ranking scales, not physical-unit axes.
F01 GlareF02 IlluminanceF03 Primary energy

Journal article · PDF p. 28

Open full-size figure

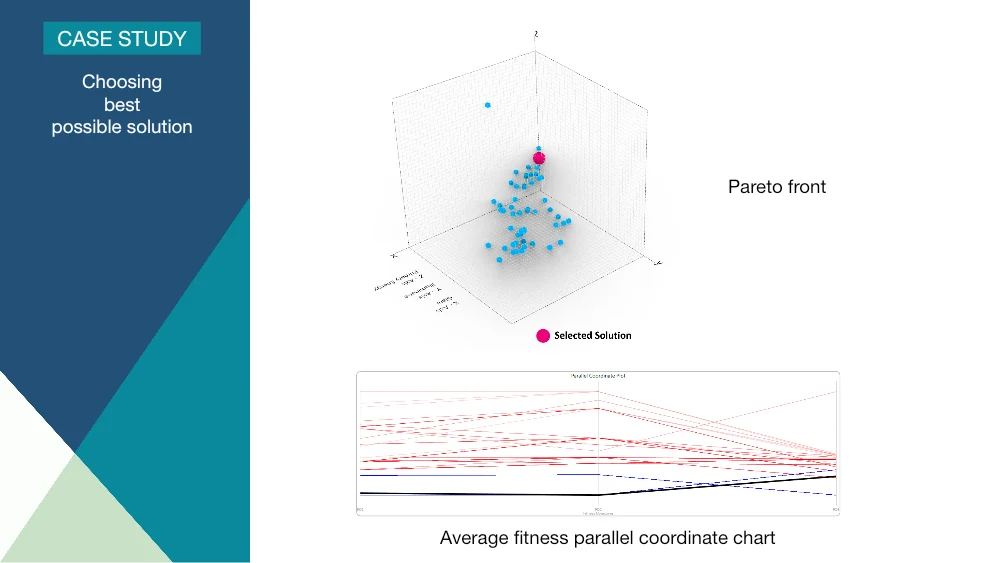

Figure 32 · black lines identify the Pareto-front solutions. The same F01 glare, F02 illuminance and F03 primary-energy ranking axes and light-pink-to-dark-blue generation sequence are retained.
F01 GlareF02 IlluminanceF03 Primary energy

Journal article · PDF p. 28

Open full-size figure

Decode the selected Pareto solution into a physical configuration

The selected Pareto-front configuration uses a roller with 45% visible transmittance, eight Venetian slats, a slat width of 16 cm, and 90 cm from the topmost slat pin to the bottom slat pin. These are the physical values recovered from the selected solution, so the optimization result can be read as a specific façade configuration.

This geometry became the basis for the personalized-control stage. It established what the system could physically do, but did not by itself determine the best position at each hour. That required connecting the available movements to the sun, the occupant’s preferred illuminance and the view-dependent glare calculation.

Selected Pareto-front shading geometryEight exterior Venetian slats of 16 centimeter width. The vertical distance between the topmost and bottom slat pins is 90 centimeters. The interior roller has 45 percent visible transmittance.90 cm pin-to-pin8 slats16 cm slat widthInterior roller45% visibletransmittanceExterior Venetian / interior roller
Schematic of the selected values, decoded from the Pareto solution. The 90 cm dimension runs from the topmost slat pin to the bottom slat pin. The roller is shown partially deployed to distinguish its zone.
The highlighted solution links the trade-off analysis to the selected 45% roller transmittance, eight 16 cm slats and 90 cm between the topmost and bottom slat pins.

Final thesis · p. 92 (PDF p. 103)

Open full-size figure

Turning preferences into control thresholds

Record a preferred range rather than one fixed target

A fixed illuminance threshold does not describe how an individual wants to work under different daylight conditions. I therefore collected preference observations in my home office over four months in 2020. For each observation, the procedure recorded the default condition and the highest and lowest acceptable illuminance conditions, together with the activity and position.

The measurement procedure used a phone light-meter application, with measurements taken 30 cm perpendicular to the surface. Five work-plane points provided an average work-plane illuminance (WPI), and a further wall or forward-facing reading described the visual surroundings. This created paired observations linking the available daylight condition to the preferred upper and lower limits.

The original measurement layout links the preference observations to a defined desk and viewing position. Illuminance measurements are in lux.

Final thesis · p. 46 (PDF p. 57)

Open full-size figure

Predict both boundaries of the preferred range

Two linear regressions related default WPI to the preferred lower and upper illuminance thresholds. The default reading was the input; the two preferred readings were the outputs. This produced a range that changed with the observed condition instead of imposing the same pair of limits at every hour.

I implemented the regressions using LunchBox components in Grasshopper and passed their predicted boundaries to the control routine. The scatter plot shows the observations and fitted relationships, while the component view shows how those relationships were connected to the model. The next stage used that range as guidance while also handling direct sun, glare and view.

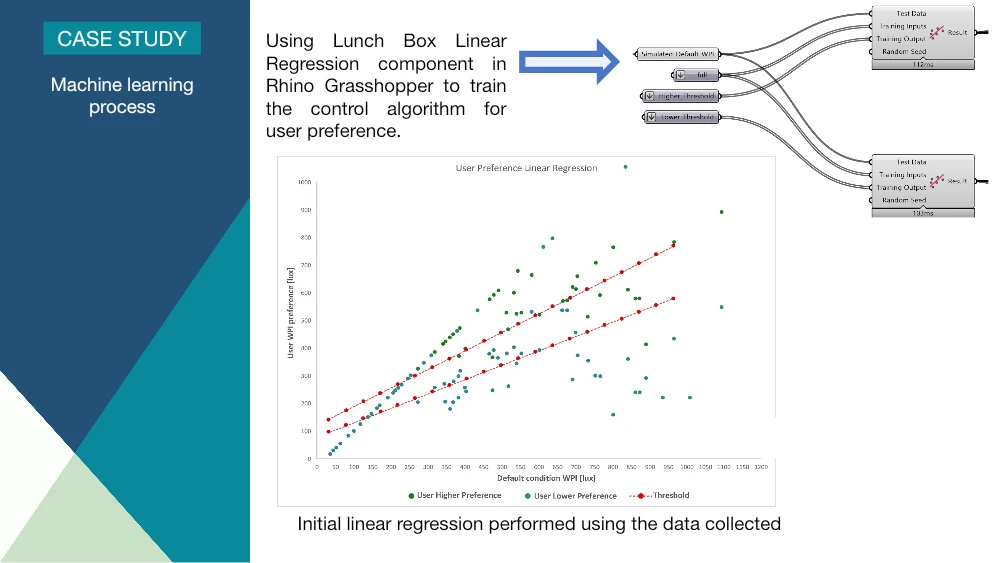

The two fitted relationships map default illuminance to the preferred lower and upper illuminance boundaries. Both axes describe illuminance in lux.

Final thesis · p. 78 (PDF p. 89)

Open full-size figure

Separate Grasshopper regressions predict the two preference boundaries used by the shading controller.

Final thesis · p. 79 (PDF p. 90)

Open full-size figure

From preferred daylight to shading actions

Intercept direct sun at the relevant part of the window

The occupied-mode algorithm first checked whether direct sunlight reached the work plane. A sun vector was traced from the affected position back to the façade, identifying which shading zone needed to respond. An intersection in the Venetian zone closed the relevant slats and those above it to −90°. An intersection in the roller zone closed the Venetian blinds and deployed the roller to the corresponding height.

This geometric test made the response specific to the source of direct sunlight. It also separated direct-sun protection from the subsequent adjustment for diffuse daylight: once the direct path was addressed, the model could search for a position that better matched the preferred illuminance range.

The sun/work-plane intersection identifies the Venetian or roller zone responsible for intercepting direct sunlight.

Final thesis · p. 77 (PDF p. 88)

Open full-size figure

Coordinate illuminance, glare and the view outside

Venetian angles were evaluated in 10° increments. In summer the routine began from the closed state and opened the slats toward the preferred range; in winter it began from the open 10° state and moved toward closure. These candidate positions allowed the model to connect daylight admission with the season’s thermal preference.

The roller was then evaluated at 30 cm deployment intervals using DGP at the modeled occupant viewpoint. The routine sought the least coverage that brought DGP below 0.30. A view target of at least 70% of the possible outside view guided the decision, with glare protection taking priority. The preferred illuminance band therefore guided the balance among several requirements, rather than acting as the only condition.

When the modeled occupant was absent, an energy-oriented branch used outdoor temperature and departure from adaptive thermal comfort to select the shade state. The controller therefore changed its purpose with occupancy: visual conditions and user control when occupied, solar and thermal management when unoccupied.

The controller compares roller positions in 30 cm steps and selects a glare-control response at the modeled viewpoint.

Final thesis · p. 81 (PDF p. 92)

Open full-size figure

View-dependent glare images connect the numerical DGP check to the light sources visible to the occupant.

Final thesis · p. 81 (PDF p. 92)

Open full-size figure

Keep the decision sequence inspectable

The controller combined the branches into one decision sequence: presence, direct sun, preferred WPI, directional glare, view, and shade movement. Each branch corresponded to a calculable condition or a user command. This made the operating logic traceable from an input to the final position of the two devices.

Manual override provided another route to the same geometry. The user could select a preferred state directly, with the associated condition and preference available as an additional observation for the preference workflow. The automated and manual paths therefore shared the model rather than operating as unrelated demonstrations.

The thesis decision tree connects presence, direct sun, preferred illuminance, DGP, view and manual override to the Venetian and roller commands.

Final thesis · p. 83 (PDF p. 94)

Open full-size figure

Demonstrate the phone-to-model control path

I built a phone-based OSC/MIDI interface and connected it to Grasshopper through gHowl. An automatic/manual switch selected the operating mode, a fader controlled the roller, and a radial fader changed the Venetian angle. The interface was tested with the digital model so its geometry responded to the phone commands on screen.

The original video shows this connection in operation. It is the final link between the parametric design and an occupant-facing interface: the user can see and change the same two shade elements that were assessed in the simulation and optimization stages.

Original demonstration: phone OSC/MIDI commands change the roller position and Venetian angle in the Grasshopper model.
Open the video

Results: from the existing room to final control

Compare the same room at four stages

The final evaluation compared the existing room, static shading, the initial automated system after geometry optimization, and the final automated controller. February 21 and August 21 provided winter and summer comparison days. Keeping the room and dates consistent made it possible to see what changed when geometry selection was followed by the personalized control logic.

The work-plane curves show the progression from high daylight peaks toward a more controlled daily profile. The final controller reduced the peak illuminance while using the changing preferred range to guide its response. The plotted upper and lower preference boundaries explain why a suitable position depends on the condition at that hour, while the fixed thresholds provide a second reference for reading the result.

What changed at each evaluation stage
StageConfigurationWhat the comparison shows
01 · Existing roomUnshaded reference conditionDaylight and glare peaks to address
02 · Static shadingA fixed shading configurationEffect of solar interception without responsive control
03 · Initial automationControl applied to the optimized geometryEffect of linking the selected geometry to movement
04 · Final automationPreferred illuminance, direct sun, DGP and view coordinatedFinal daily response across visual, thermal and lighting outputs
August 21 · work-plane illuminance (lux) against hour of day. The four stage curves are compared with the preferred and static threshold lines.

Final thesis · p. 95 (PDF p. 106)

Open full-size figure

February 21 · the same four-stage work-plane comparison (lux). The final controller reduces the high afternoon peak.

Final thesis · p. 95 (PDF p. 106)

Open full-size figure

Suppress glare peaks through viewpoint-based control

The same four-stage comparison was then read in terms of DGP. The existing, static and initial automated configurations show periods with elevated glare probability; the final configuration controls those peaks using the roller-position evaluation. This provides a direct result of adding the viewpoint-based glare check after the geometry optimization.

The illuminance and glare plots should be read together. A daylight peak can be reduced through slat movement, but glare from a visible light source may require additional roller coverage. The final sequence coordinates those actions, with the outside-view target and manual override maintaining the occupant’s role in the decision.

August 21 · DGP (dimensionless) against hour of day. Read the final-control curve against the 0.30 controller target; window radiation is a separate secondary-axis context series.

Final thesis · p. 95 (PDF p. 106)

Open full-size figure

February 21 · the viewpoint-based controller addresses the glare peak visible in the earlier stages. DGP is dimensionless; the radiation series is contextual.

Final thesis · p. 95 (PDF p. 106)

Open full-size figure

Read the thermal effect alongside the visual outcome

Shading also changes how much solar energy enters the room. The thermal comparison plotted the total thermal load and operative temperature for the same four stages, alongside the solar context. The resulting profiles show smaller changes in these outputs than in the glare peaks, which makes the balance among daylight, glare and thermal performance visible.

This stage connected the façade decisions back to building performance. The selected geometry and final controller were assessed as part of the room’s daily thermal response, while the visual results explained when their movements were useful to the occupant. The February 21 and August 21 results retain that two-day scope.

February 21 · modeled hourly total thermal-load output (kWh). Dashed window radiation is secondary-axis context, not an additional load component.

Final thesis · p. 98 (PDF p. 109)

Open full-size figure

August 21 · modeled hourly thermal-load output (kWh). The four stages show the change in the room’s daily thermal response.

Final thesis · p. 98 (PDF p. 109)

Open full-size figure

February 21 · modeled indoor operative temperatures and associated glazing-surface temperatures (°C), with weather and radiation context.

Final thesis · p. 98 (PDF p. 109)

Open full-size figure

August 21 · the same temperature comparison (°C). The indoor operative-temperature curves show smaller changes than the visual-comfort outputs.

Final thesis · p. 98 (PDF p. 109)

Open full-size figure

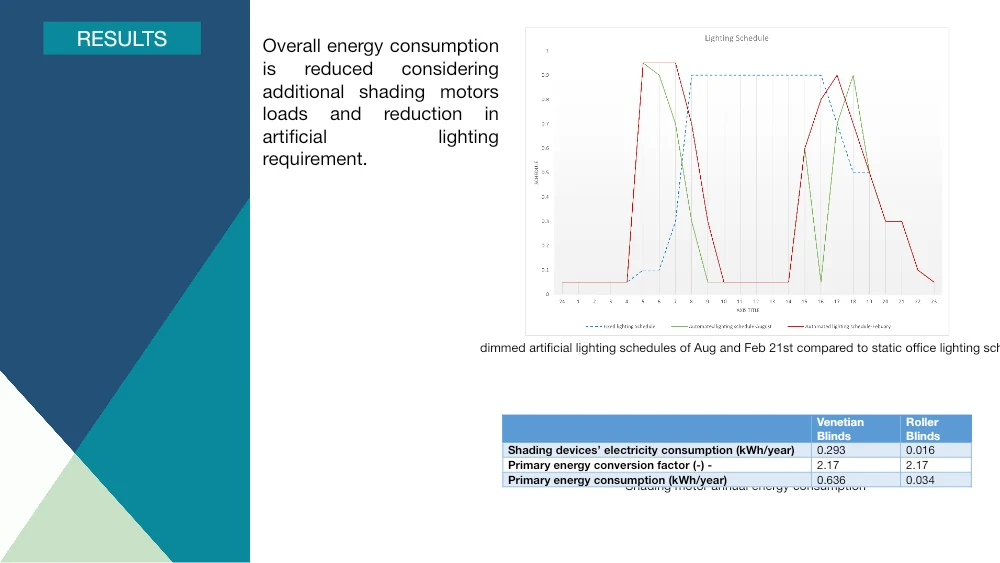

Use available daylight to reduce the electric-lighting schedule

The lighting-control routine combined modeled presence with the daylight available at the work plane. Artificial lighting compensated when daylight was insufficient and dimmed when it could provide the required contribution. The final schedule comparison shows this operating pattern against a conventional office-lighting schedule for the two evaluation days.

Taken together, the development produced a selected dual-zone geometry, a preference-based controller, and a demonstrated phone-to-Grasshopper interface. The staged results connect each addition to its purpose: the strategy comparison established the device combination, optimization resolved the physical trade-offs, and the controller improved the daily handling of illuminance and glare while coordinating the lighting and thermal response. The five-strategy comparison and geometry optimization were subsequently published in the Journal of Green Building; the complete preference and controller development is documented in the thesis.

Lighting schedule fraction (0–1) against hour of day. The two modeled dimmed schedules show when daylight and presence reduce the commanded electric-lighting level relative to the conventional schedule.

Final thesis · p. 99 (PDF p. 110)

Open full-size figure

The complete project record

Full book

Read the complete report, thesis, or presentation here. Use the page controls to explore the original figures and methods.

Download PDF Open full PDF

123 pages · M.Sc. thesis · Politecnico di Milano · 2021

User-Specific Automated Kinetic Shading Design

The original document, page by page.

The reader loads when you open the book.

Contact

Do you have a question or want to chat?

Analytics preferences

Optional Google Analytics uses cookies to measure page visits and engagement. You can browse the entire portfolio with analytics off.

Analytics is off in this browser.

Privacy details. Change your choice here at any time. Your preference is remembered for up to 180 days.
