Home for Life Performance Study

A building-performance study evaluating energy demand and adaptive thermal comfort through staged ventilation, shading and solar-system simulations in TRNSYS, TRNBUILD and TRNEdit.

The comfort comparison uses 5,688 climate-eligible modeled Zone 2 hours.
Diagram in text
Model the house
Define the envelope, thermal zones and schedules.
Condition the air
Test ground heat exchange and ventilation.
Control the zone
Use running-mean comfort and adjust shading.
Add solar systems
Model useful solar heat and BIPV generation.
Compare stages
Read sensible loads and Category II hours.

Approach and contribution

30-second case brief

Building systems evaluated as one operating sequence.

Problem
Coordinate the thermal, ventilation, daylight, and control behavior of an integrated low-energy housing precedent.
My contribution
Project lead and major contributor across modeling, analysis and controls, with independent development of the BIPV analysis.
Outcome
Reported annual sensible heating and cooling loads fall from 34.46 to 4.20 kWh/m². The final stage places 83.53% of 5,688 climate-eligible modeled Zone 2 hours within the Category II temperature band and reports 6,514.32 kWh/year of PV generation.

ApproachTRNSYS · TRNBUILD · adaptive comfort feedback · staged energy comparison · running-mean temperature-band reassessment.

Study basis

The Home for Life study brought the building envelope, indoor conditions and environmental systems into one TRNSYS simulation workflow. The objective was to understand how these systems could work together to improve thermal comfort and reduce heating and cooling loads throughout the year.

I led the collaborative project and contributed across modeling, analysis, control development and presentation. I independently developed the BIPV analysis, connecting roof-integrated photovoltaic generation with the building's thermal and electrical assessment.

The final study reported annual sensible heating and cooling loads of 4.20 kWh/m² and photovoltaic generation of 6,514.32 kWh per year. The running-mean reassessment places 83.53% of climate-eligible modeled Zone 2 hours within the EN 15251:2007 Category II temperature band.

Context
Politecnico di Milano, 2020
Role
Project lead and major contributor
Platform
TRNSYS, TRNBUILD and TRNEdit
Study focus
Energy, adaptive comfort and daylight
The team's three-dimensional Home for Life model in SketchUp with the TRNSYS3D extension.
The model developed for the study. Walls, roofs, windows and zone boundaries were translated into the TRNSYS building description. Report, p. 7.
Open image

Representing the building as connected thermal zones

The analysis began with the existing Home for Life house and its documented geometry, construction and operating schedules. The team created a three-dimensional model using the TRNSYS3D extension for SketchUp, then imported its building description into TRNSYS. Each surface was assigned to a thermal zone and identified as external, ground-coupled or adjacent to another zone.

The resulting model contained two ground-floor zones and one upper-floor zone. Zone 2 was the double-height living space, so its operative temperature became the main feedback variable for the comfort-control study. This connected the simulations to a specific place in the building. Conditions in the shared living space were evaluated alongside the annual building-wide load results.

Ground and first-floor plans and two sections showing the three thermal zones in teal, coral and yellow.
Plans and sections identify Zone 1 on the ground floor, the double-height Zone 2 and Zone 3 above. The report describes areas of 65, 27 and 72 m² respectively. Report, p. 6.
Open image

Separating insulation performance from thermal storage

Three envelope constructions were compared: the original construction, a lightweight alternative and a massive alternative. Their thermal transmittance values were kept close enough to examine the effects of construction beyond insulation alone. The comparison therefore included thermal mass, time shift and periodic thermal transmittance, alongside the conventional U-value.

For the external wall, the massive option increased the reported mass per area to 312.6 kg/m², compared with 87.93 kg/m² for the original wall and 62.3 kg/m² for the lightweight option. Its wall time shift was 16.94 hours, compared with 13.95 and 9.75 hours. These outputs showed how the envelope could store heat and change the timing of indoor temperature changes, which made it relevant to the later ventilation and shading decisions.

Two charts compare wall U-value and thermal mass across lightweight, original and massive construction.
The wall alternatives have similar U-values, while the massive wall has substantially more thermal mass. Redrawn from Figures 1.25 and 1.27; time-shift results appear in Figure 1.29. Report, p. 13.
Open image

Reading the conditions the building would need to respond to

The climate analysis compared Tirstrup, Bergamo and Trapani before evaluating the building systems. The annual outdoor-temperature means in the weather inputs were 7.63°C, 13.94°C and 18.05°C respectively. The hourly temperature maps also showed when those conditions occurred, which mattered for a controller that would respond to seasonal and daily changes.

Within each climate, the team compared combinations of the three envelope options, three ventilation rates and three shading fractions. Bergamo became the setting for the detailed coupled-system development presented here, using the massive envelope as its construction basis. The climate record supplied the outdoor conditions for the adaptive-comfort calculation, ground-temperature model and air-source comparisons.

The original annual outdoor-temperature maps for Tirstrup, Trapani and Bergamo, arranged by hour and month.
Hourly climate patterns across the year. Each panel maps outdoor temperature against hour of day and progression through the year, with its own temperature color scale in °C. Report, p. 21.
Open image

Turning indoor comfort into a control input

Establishing the development baseline

The system-development sequence used the massive-envelope Bergamo model with 0.6 air changes per hour and a 50% shading setting. The running-mean reassessment places 1,479 of 5,688 climate-eligible modeled hours (26.00%) within the EN 15251:2007 Category II temperature band. The temperature record explains why coordinated control was the next step: indoor conditions changed with the seasons and with the interaction between solar gains, ventilation and the envelope.

Operative temperature was used to represent the indoor condition. It accounts for both air temperature and the surrounding radiant environment, so it connects the comfort assessment to changes in the building surfaces as well as to the air supplied by ventilation. This made it a useful shared variable for evaluating the different systems.

Daily means of the original hourly outdoor and Zone 2 operative temperatures for the 50% shading baseline.
Seasonal conditions in the system-development baseline. The curves show daily means of the original hourly simulation records, in °C. These daily means describe the weather and indoor response; the corrected assessment uses the prior-day running mean explained below. Original simulation context: report, p. 70.
Open image

Assessing the hourly outputs against a running-mean benchmark

The EN 15251:2007 adaptive temperature-band benchmark relates indoor operative temperature to recent outdoor conditions. For each simulation day, the reassessment uses Trm[d] = 0.8 × Trm[d−1] + 0.2 × Tdaily[d−1]. The previous running mean carries 80% of the weight and the previous day's outdoor mean carries 20%. This value remains constant during the day, so the assessment follows the preceding weather history rather than the outdoor temperature at that hour.

Category II uses an upper limit of 0.33 × Trm + 21.8°C and a lower limit of 0.33 × max(Trm, 15) + 15.8°C. The lower boundary stays at 20.75°C between running means of 10 and 15°C. Both band endpoints are included. Category I provides a narrower comparison and Category III a wider one. The same rules and outdoor-temperature sequence are applied to all five stages.

The running mean is within the 10–30°C assessment domain for 5,688 hours, covering 64.93% of the 8,760-hour simulation. The remaining 3,072 hours fall below that domain and are left unassessed. Every stage percentage therefore uses the same 5,688-hour denominator. To initialize the running mean, the calculation assumes periodic repetition of the supplied 365-day weather sequence.

The scatter plots pair each original Zone 2 hourly temperature with its reassessed running mean. The final BIPV-stage outputs cluster much more closely around the bands than the baseline, connecting the numerical comparison to the actual simulated temperature response.

Baseline and final BIPV hourly Zone 2 operative temperatures plotted against running-mean outdoor temperature, with EN 15251:2007 Categories I, II and III. Category II contains 1,479 and 4,751 of the same 5,688 eligible hours.
Original modeled hourly outputs assessed using the corrected running mean. Both axes are in °C. Each panel contains 8,760 hours; dark points are climate-eligible and gray points are outside the assessment domain. Category II contains 26.00% of eligible baseline hours and 83.53% of eligible final-stage hours. Reassessment methods · Stage results (CSV).
Open image

Defining the original controller's temperature range

The adaptive-comfort workflow evaluated indoor operative temperature against a range linked to outdoor thermal conditions. In the TRNSYS implementation, a floating-mean outdoor-temperature component supplied the reference temperature. The controller calculated its upper and lower operative-temperature limits from that input, with a lower bound of 20°C and an upper bound of 31°C.

The nominal equations were 0.33 × Trm + 16 for the lower limit and 0.33 × Trm + 21.5 for the upper limit, subject to those bounds. The figure makes this relationship visible: the control range shifts as outdoor conditions change. These are the historical implemented control rules. They remain distinct from the continuous EN temperature-band limits used in the retrospective running-mean reassessment above.

Historical implemented upper and lower operative-temperature control limits, with caps at 31 and 20 degrees Celsius, distinct from the reassessment's EN temperature bands.
Historical temperature limits implemented in the adaptive controller, in °C. This diagram describes the original model's control equations, not the EN 15251:2007 assessment bands. Corrected stage results use the separate running-mean benchmark.
Open image

Using the previous hour to choose the next action

The comfort equation produced a feedback signal that distinguished below-range, comfortable and above-range conditions. These principal states were coded as −1, 1 and 2. The previous hour's result was then used as an input to the following control decision, together with the relevant air and surface temperatures.

This feedback connected the comfort analysis to system operation. A ventilation decision could change the supply-air temperature and indoor conditions; the resulting comfort signal could then inform the next ventilation or shading step. The algorithm was developed as explicit equations and decision rules within the simulation, making the relationship between the inputs and the system response inspectable.

Hourly comfort feedback informs the ventilation and shading decisions. The comfort and shading development is documented in report pp. 44–52.

Developing the air path before developing its controls

Comparing pipe depth and length

The ground-pipe study investigated how incoming air could be tempered before entering the building. The model used the more stable temperature below ground to exchange heat with the ventilation air. Pipe depth, length, number and diameter were then varied to compare their effect on outlet temperature over the year.

The depth comparison tested 1, 2 and 4 metres. The 4-metre option produced a smaller seasonal temperature swing, with warmer outlet air during winter and cooler outlet air during summer. At that depth, the length study compared 10, 20 and 30 metres. The 30-metre option further moderated the outlet-temperature curve, and these comparisons guided the ground-pipe configuration used in the design sequence.

Original annual and selected-day ground-pipe outlet-temperature comparisons for pipe depths of 1, 2 and 4 metres.
Depth comparison. Annual outlet-temperature curves and summer/winter comparisons show the tempering effect of deeper placement. Temperatures are in °C. Report, p. 37.
Open image
Original outlet-temperature comparisons for ground-pipe lengths of 10, 20 and 30 metres at 4 metres depth.
Length comparison at 4 metres depth. The study compares 10, 20 and 30 metres, including selected winter and summer conditions. Report, p. 38.
Open image

Distributing the airflow across parallel pipes

The next comparison varied the number of parallel pipes while adjusting pipe diameter around the airflow and velocity assumptions. The investigated arrangements used one 0.25-metre pipe, three 0.15-metre pipes and five 0.10-metre pipes. The five-pipe arrangement produced the most moderated outlet temperatures in this comparison.

This stage converted the ground-coupling strategy into an air-supply option with a defined thermal response. It became one of the inputs to the ventilation controller, which compared ground-pipe air, direct outdoor air and heat recovery to select a route around the room's thermal condition.

Annual and selected-day temperature comparisons for one, three and five parallel ground pipes.
Pipe-number comparison at 4 metres depth. The annual curves and selected-day results compare how the parallel-pipe arrangements affect outlet temperature. Report, p. 39.
Open image

Selecting air sources around the room's thermal condition

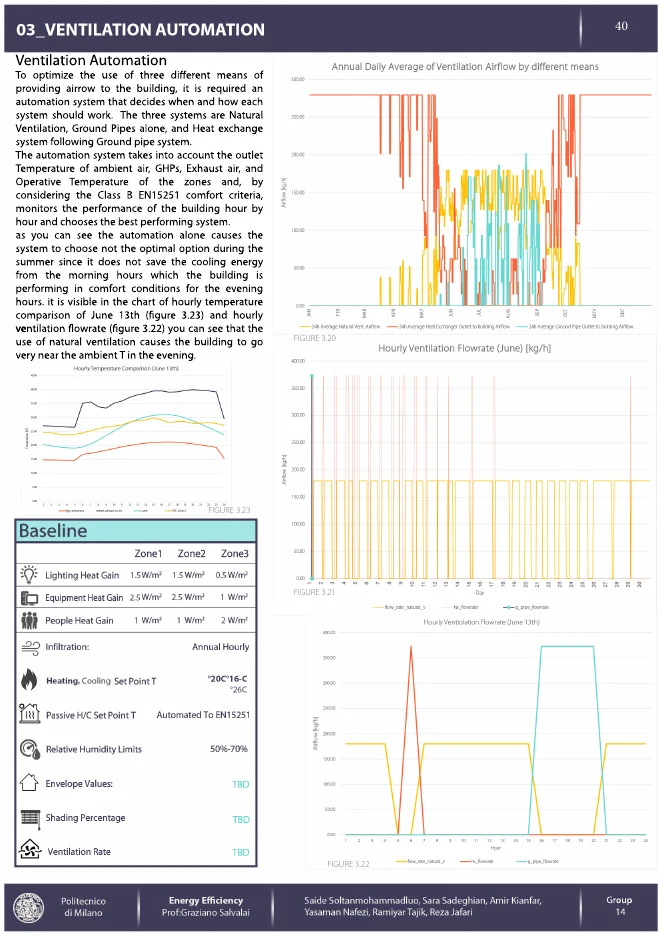

The ventilation controller coordinated three routes: natural ventilation, ground-pipe air and ground-pipe air combined with air-to-air heat exchange. It compared outdoor, ground-pipe, exhaust and zone temperatures alongside the comfort feedback. The purpose was to select an air path that could support the room's current heating or cooling need.

The operating sequence was refined with a summer schedule that restricted natural ventilation during the peak ambient-temperature period, from 10:00 to 16:00. This connected the hourly route choice to the daily pattern of available cooling. The June 13 results show when the different routes operated and how the Zone 2 operative temperature developed alongside outdoor and ground-pipe temperatures.

Under the common running-mean benchmark, the ventilation-stage outputs contain 3,108 hours within Category II, or 54.64% of the 5,688 climate-eligible modeled hours. This stage provides the next comparison for the shading controller, which addresses the solar gains entering through the building's transparent surfaces.

June 13 hourly ventilation airflow and temperature plots after applying the summer operating schedule.
June 13 after the schedule refinement. The upper plot shows ventilation-route airflow in kg/h; the lower plot compares ground-pipe, ambient, operative and exhaust temperatures in °C. Report, p. 41.
Open image

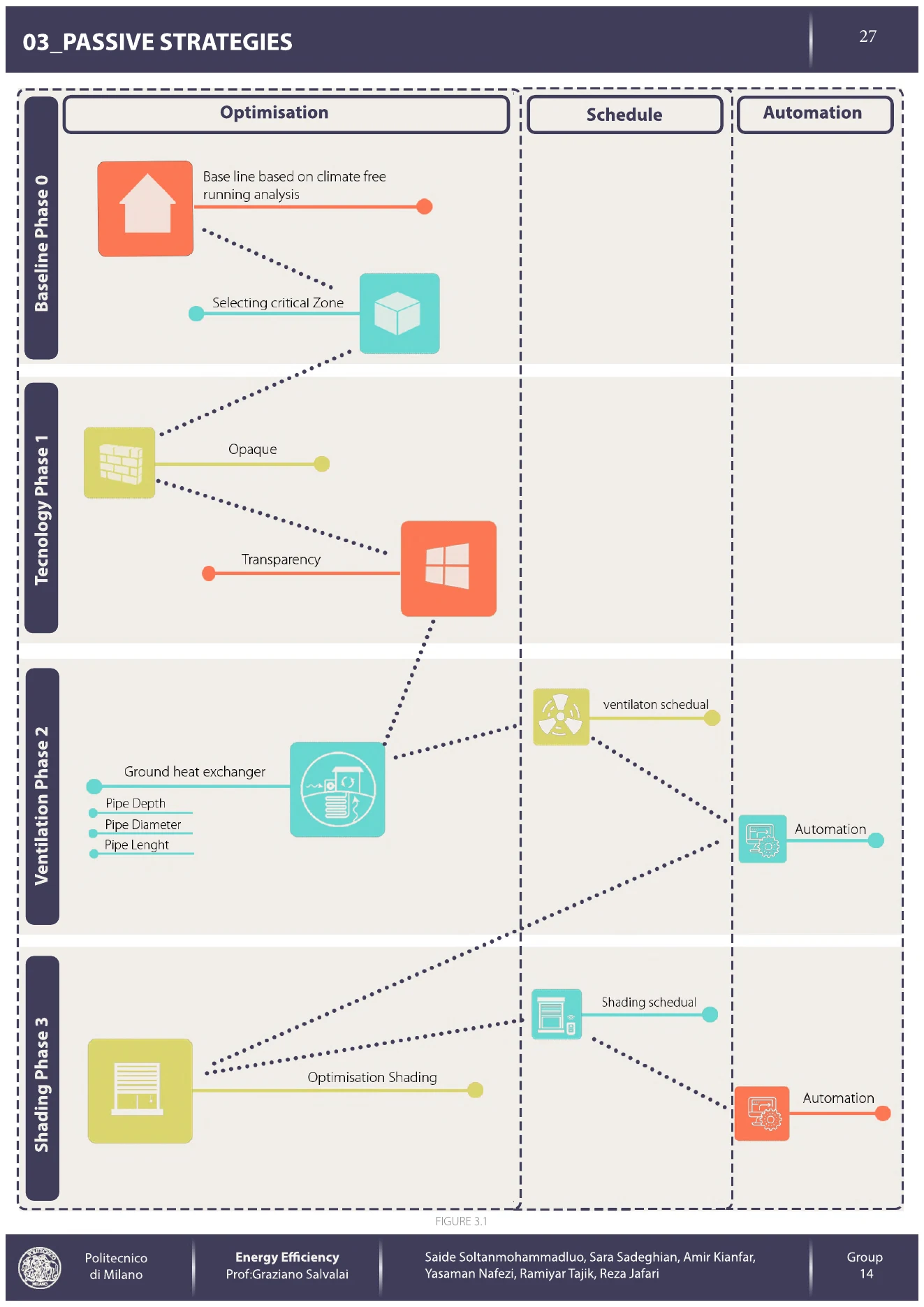

Developing the controller through three simulation stages

Stage 1: relating the shading fraction to comfort feedback

The initial shading workflow compared the comfort response of candidate shading fractions using saved simulation profiles. Those comparisons were translated into control equations, then combined with the hourly comfort feedback and operating schedule. Where candidate settings gave equal comfort performance, the selection logic favored less shading to retain more daylight.

The hourly record makes the decision sequence tangible. A shaded fraction of zero represents an open condition; larger fractions reduce the transparent area exposed to solar gains. The accompanying comfort signal shows the thermal context in which these changes occurred. Reading the two traces together connects the control rule to its simulated operation.

Original February 10 to 17 hourly shading fraction and comfort-state data for the first controller-development stage.
First-stage controller, February 10–17. The upper trace is the shaded fraction, a dimensionless value. The lower trace is the comfort feedback: −1 below range, 1 within range and 2 above range. Redrawn from the original stage workbook's hourly records.
Open image

Stage 2: adding the envelope's thermal state

The second development stage added an external surface-temperature indicator to the comfort feedback. This gave the controller information about the envelope's solar heating as well as the room's operative temperature. The surface-temperature rule helped maintain shading when the envelope remained hot, even when the most recent indoor condition had returned to the comfort range.

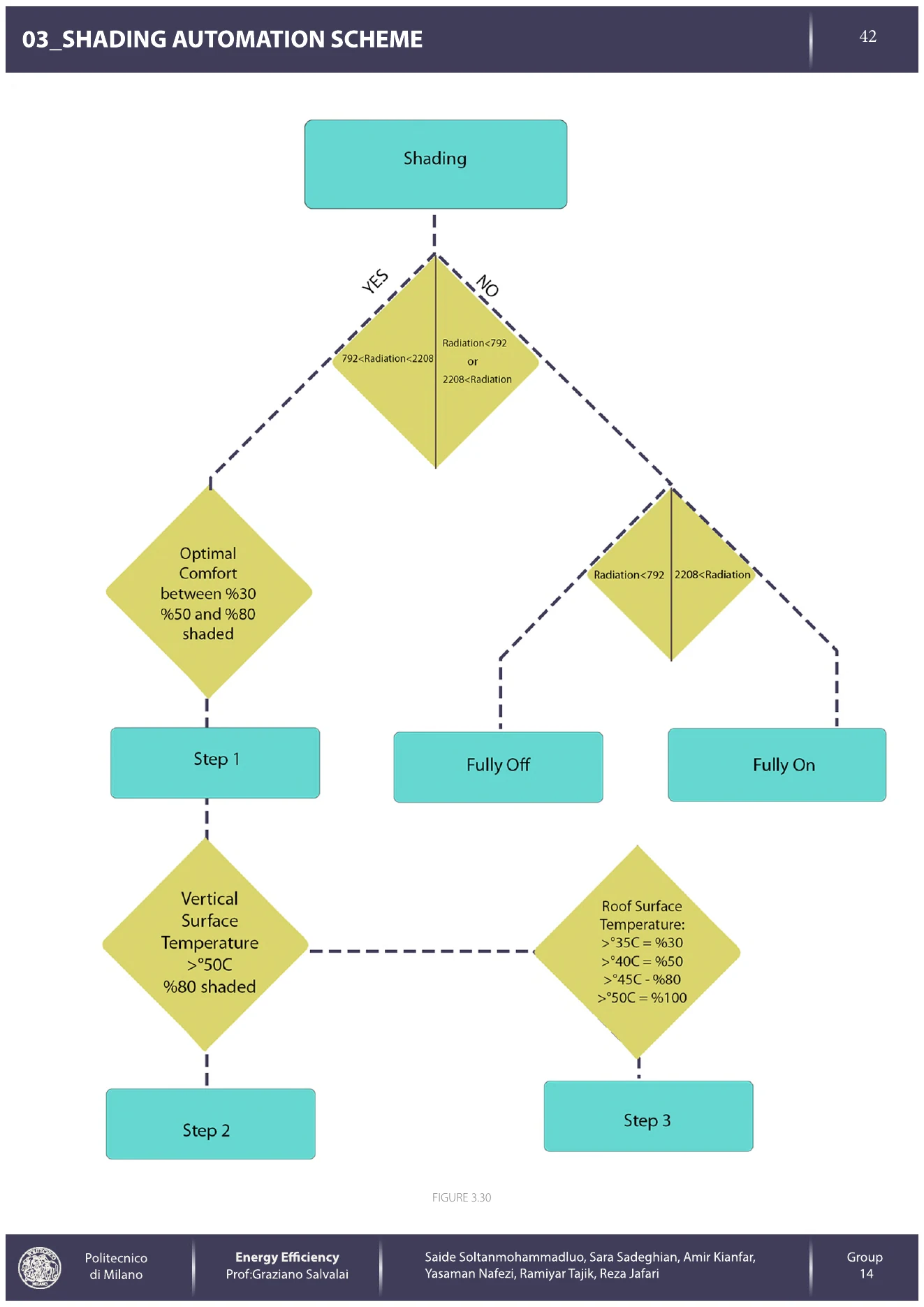

The documented refinement used a 50°C surface-temperature threshold to call for the maximum shading ratio. This connected the control action to heat accumulating in the envelope and the likelihood of renewed indoor warming. The plotted traces show the surface-temperature indicator, selected shading fraction and comfort feedback over the same period, so the reader can inspect how those variables developed together.

Original stage-two surface-temperature indicator, shading fraction and comfort feedback for February 10 to 17.
Second-stage controller, February 10–17. Surface temperature is shown in °C, shading as a fraction and comfort as a coded state. The dotted line marks the documented 50°C threshold. Redrawn from the original stage workbook.
Open image

Stage 3: controlling vertical and roof windows separately

The final development stage separated the roof-window controls from the vertical-window controls. Each could now respond to its own surface-temperature conditions while remaining connected to the comfort feedback. The vertical-window strategy retained the previous stage's thermal-state refinement, while the roof strategy introduced progressively stronger shading as roof surface temperature increased.

The documented roof-control sequence used thresholds of 35, 40, 45 and 50°C, associated with minimum shading fractions of 30%, 50%, 80% and full coverage. Separating the two window groups gave the system a more specific response to where solar heating occurred. The final shading-stage outputs contain 3,977 hours within Category II, or 69.92% of the 5,688 climate-eligible modeled hours in the running-mean benchmark.

Wall and roof surface temperatures and separate vertical and roof-window shading fractions for February 10 to 17.
Separate window controls, February 10–17. Surface temperatures are in °C; the lower traces show the dimensionless shaded fractions for vertical and roof windows. These are the original third-stage simulation records.
Open image

Connecting useful heat and electricity to the building model

Sizing the solar thermal system around its useful contribution

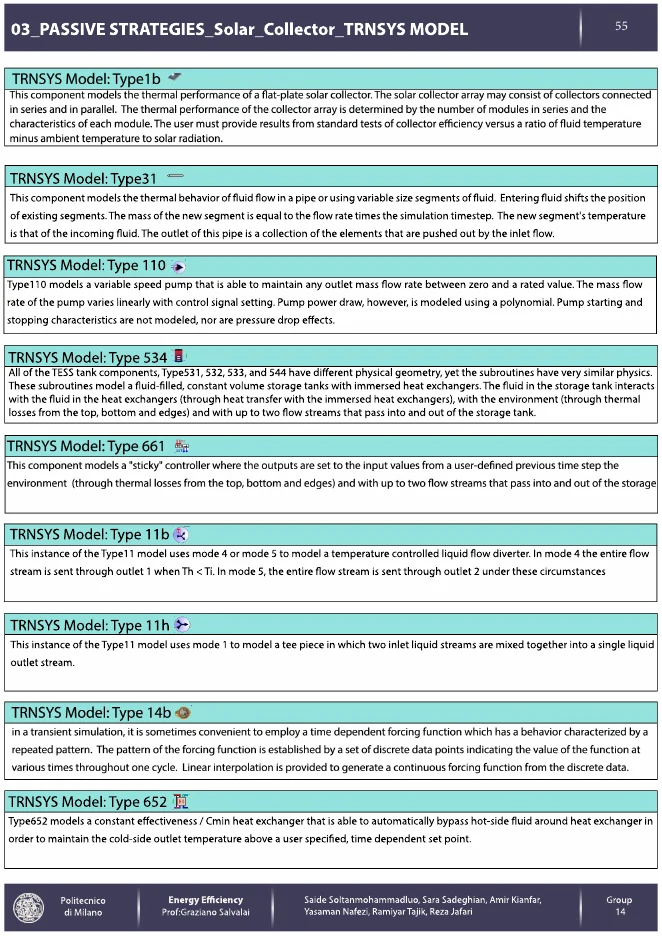

The solar thermal model connected the collector, hot-water storage and ventilation heating path. TRNEdit parametric runs varied collector area and compared the resulting solar fraction. The curve showed the relationship between additional collector area and its contribution to the system, allowing the roof allocation to be evaluated alongside space for photovoltaic generation.

The design sequence selected a 10 m² solar thermal collector. Its useful heat supported the domestic-hot-water system and could raise the ventilation supply-air temperature when the control conditions called for heating. This linked the collector-sizing decision to the temperature and comfort feedback already used by the ventilation strategy.

Recreated solar-fraction versus collector-area chart, highlighting the selected 10 square metre design at 44 percent solar fraction.
Collector sizing through parametric simulation, redrawn from the original area-sweep results. Collector area is in m² and solar fraction is in %. The selected 10 m² design is highlighted. Report, p. 57.
Open image

Modeling the BIPV assembly as part of the air path

I independently developed the BIPV analysis as the next solar layer in the study. The TRNSYS model represented the photovoltaic assembly's electrical generation and its thermal interaction with the air path. This allowed the roof-integrated system to be assessed alongside the ventilation and heating strategy, rather than as an isolated annual electricity calculation.

The unglazed BIPV model used Type 568 to represent heat transfer through the assembly and photovoltaic electricity production. Its useful heat could temper the ventilation air, and the annual results compared the resulting supply temperature with indoor operative temperature. This kept the thermal contribution of the roof system connected to the conditions being controlled in the living space.

Recreated annual hourly supply-air and Zone 2 operative-temperature results after incorporating BIPV into the model.
The BIPV-stage temperature output links the roof assembly to ventilation supply and indoor operative conditions. Redrawn from the original hourly simulation records, with temperatures in °C and month labels across the year. Report, p. 61.
Open image

Evaluating the photovoltaic generation profile

The reported photovoltaic output was 6,514.32 kWh per year, with monthly generation increasing toward summer and peaking in July. The roof arrangement connected photovoltaic placement with the solar thermal collector. Keeping the generation profile visible alongside the building-load assessment made the seasonal relationship between energy supply and demand part of the final design discussion.

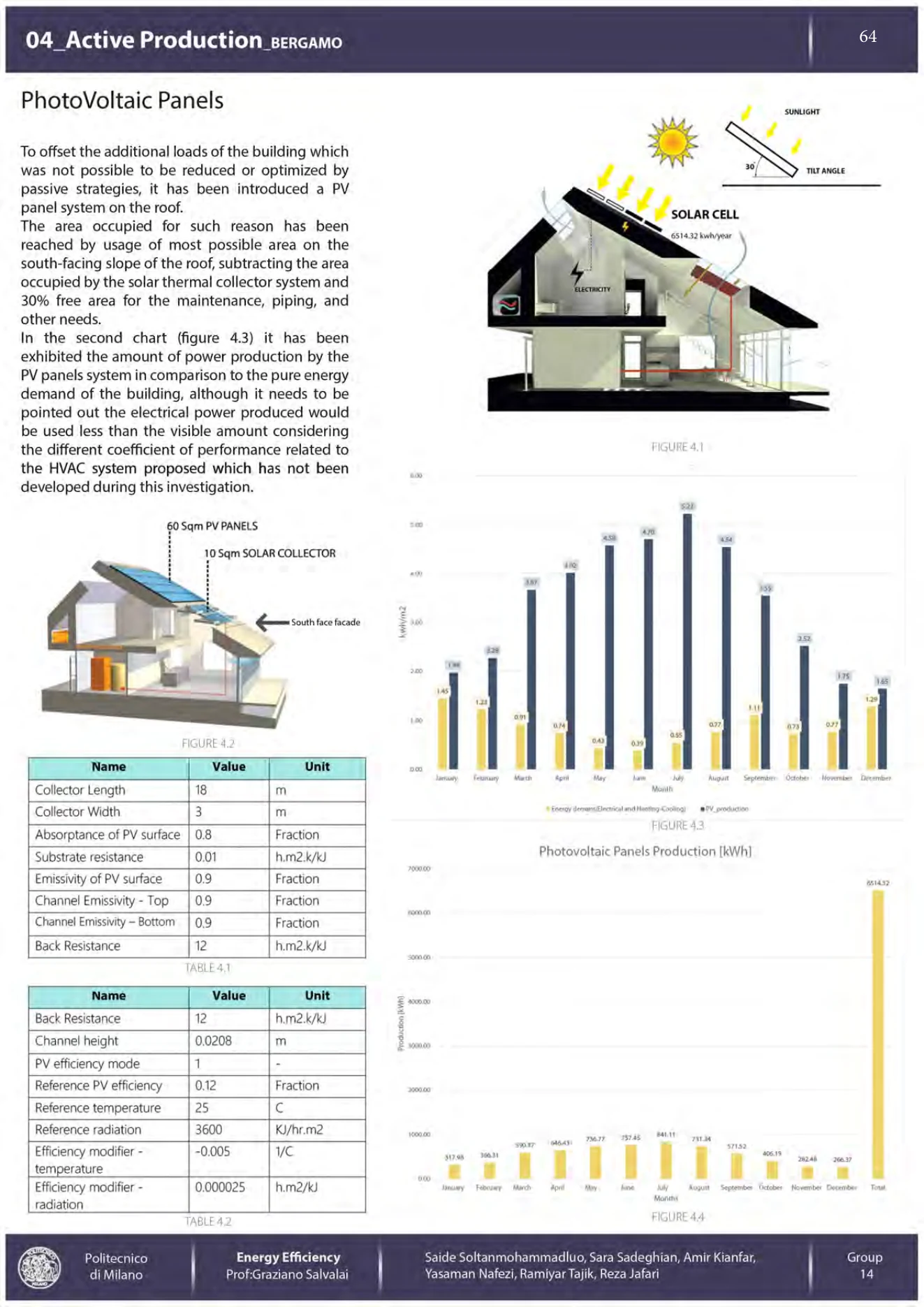

Vector redrawing of the project section, showing the photovoltaic roof, solar thermal collector, electricity path and 30-degree solar orientation.
The project's roof-integrated solar arrangement, redrawn as a section schematic. The photovoltaic roof and 10 m² solar thermal collector are shown with the documented 30° solar orientation. Report, p. 64.
Open image
Monthly modeled photovoltaic electricity generation, reaching its highest value in July.
Simulated photovoltaic electricity, in kWh per month. The annual output reported in Figure 4.4 is 6,514.32 kWh. Redrawn from the original monthly values. Report, p. 64.
Open image

Checking the lighting conditions created by the thermal strategy

Evaluating daylight across the occupied spaces

Daylight was evaluated alongside thermal performance because the shading fraction also changes the light available inside the house. The spatial analysis mapped daylight conditions across the floors, allowing the lighting assessment to be read against the building layout and the locations of rooms and openings.

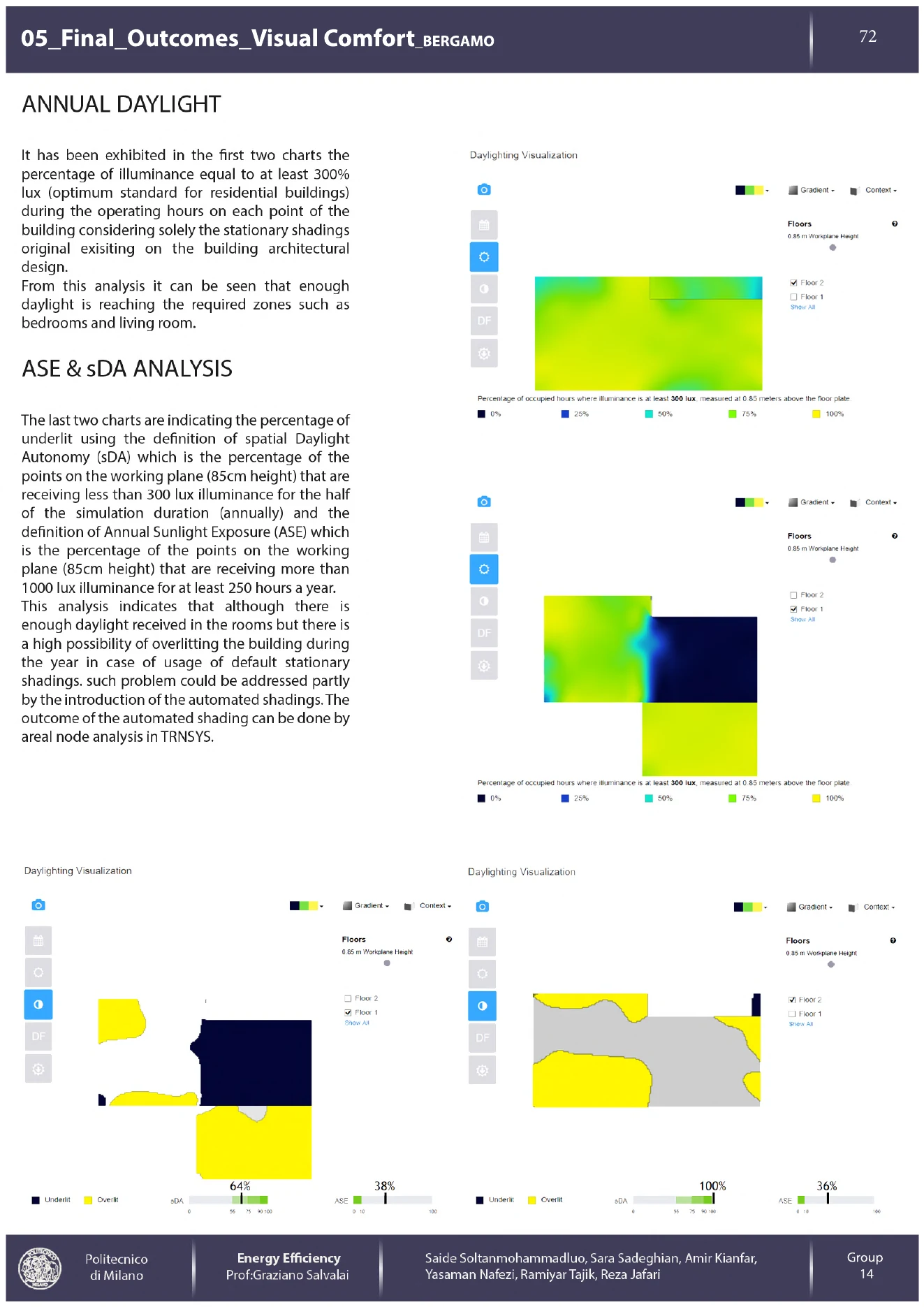

The reported spatial daylight autonomy values were 64% and 100% for the two floor views, with corresponding annual sunlight exposure values of 38% and 36%. These outputs describe the spatial distribution of light under the documented daylight-analysis configuration. They complement the more detailed point analysis used to examine the automated shading in the living space.

The project's two floor-level daylight-analysis views showing the reported spatial daylight autonomy and annual sunlight exposure results.
Floor-level daylight outputs. The reported sDA values are 64% and 100%, and ASE values are 38% and 36%. These spatial outputs use the documented fixed-shading daylight configuration. Report, p. 72.
Open image

Connecting the automated shading to the living-room experience

The automated-shading analysis placed a daylight evaluation point in Zone 2, at a height of 1 metre. Its hourly illuminance record showed 3,327 analyzed hours above 300 lux and 1,153 above 1,000 lux within the reported 4,745-hour evaluation. This brought the thermal-control strategy back to the light conditions at a specific position in the shared living space.

The resulting design proposal paired the automatic thermal shading with an occupant-operated curtain for periods of high illuminance. This gave the occupant a local way to adjust the visual environment alongside the building's automatic response to thermal conditions. The lighting strategy can therefore be read alongside the final energy and thermal-comfort outcomes below.

The original hourly illuminance results at the Zone 2 evaluation point across the year.
Hourly illuminance at the living-space evaluation point, in lux. The record shows the timing and magnitude of high-light periods under the automated shading strategy. Report, p. 73.
Open image
The ground-floor plan and building section locating the Zone 2 daylight evaluation point at a height of one metre.
The evaluation point connects the hourly illuminance results to the actual living-space geometry. The thresholds are illuminance levels in lux. Report, p. 73.
Open image

Results: the step-by-step energy and temperature response

The final comparison brings the development stages together, showing the reported annual heating and cooling loads, the corrected running-mean temperature-band assessment and solar electricity production.

Reducing heating and cooling loads at each stage

The starting model had a combined annual sensible heating and cooling load of 34.46 kWh/m². Incorporating the heat exchanger reduced that load to 27.48 kWh/m², a 20.3% reduction from the starting model. The ground-pipe ventilation stage brought it to 23.48 kWh/m², a further 14.6% reduction from the heat-exchanger stage.

Adaptive shading then reduced the combined load to 16.97 kWh/m², 27.7% below the preceding ventilation stage. Adding the solar thermal system brought it to 6.27 kWh/m², a further 63.1% reduction. The final BIPV-stage model reached 4.20 kWh/m², 33.0% below the solar-thermal stage. Each percentage describes the change from the immediately preceding model in the reported development sequence.

Together, these stages reduced the combined simulated sensible load by 87.8% relative to the starting model. Annual heating fell from 31.07 to 3.74 kWh/m², and cooling from 3.39 to 0.46 kWh/m². Keeping the heating and cooling components visible shows how the final result developed through the coordinated envelope, ventilation, shading and solar strategy.

Step-by-step annual sensible heating and cooling loads: 34.46, 27.48, 23.48, 16.97, 6.27 and 4.20 kilowatt-hours per square metre across the six model stages.
Reported annual sensible heating and cooling loads, in kWh/m². Each bar separates the heating and cooling components; the label gives their combined total. Percentage reductions in the text are calculated from these reported totals. Redrawn from Figure 5.7. Report, p. 67.
Open image

Comparing all stages against the same adaptive benchmark

The corrected Zone 2 assessment compares every stage over the same 5,688 climate-eligible modeled hours. The share within the EN 15251:2007 Category II temperature band rises from 26.00% in the 50% shading baseline to 54.64% after ventilation, 69.92% after adaptive shading and 84.39% after solar thermal. The final BIPV stage places 83.53% within that band, 57.53 percentage points above the baseline.

The stage chart separates the nested bands into non-overlapping segments, then shows the hours colder or warmer than Category III. The table gives inclusive counts: Category I is included in II, and II is included in III. These columns should be compared across stages, not added together. The wider Category III band contains 92.95% of eligible final-stage hours, compared with 34.85% at baseline.

The distribution also explains the trade-offs within that progression. The baseline has 2,919 eligible hours above Category III and 787 below it. In the ventilation stage, above-band hours fall to 105 while below-band hours increase to 1,996. The shading and solar-thermal stages bring below-band hours to 737 and 252 respectively. Reading both sides of the band shows how the modeled sequence balances overheating and colder conditions rather than optimizing only one extreme.

The BIPV-stage Category II count is 49 hours lower than the solar-thermal stage, a decrease of 0.86 percentage points on the common denominator. The temperature-band outcome therefore does not improve at every step. These cumulative model stages show the combined system response rather than isolating the effect of each component.

The final design connects three complementary outputs: reported sensible heating and cooling loads of 4.20 kWh/m², 4,751 of 5,688 climate-eligible modeled Zone 2 hours within Category II, and annual photovoltaic generation of 6,514.32 kWh. The corrected temperature-band assessment adds a traceable running-mean comparison to the original model and control sequence. The energy and photovoltaic quantities remain the reported simulation results.

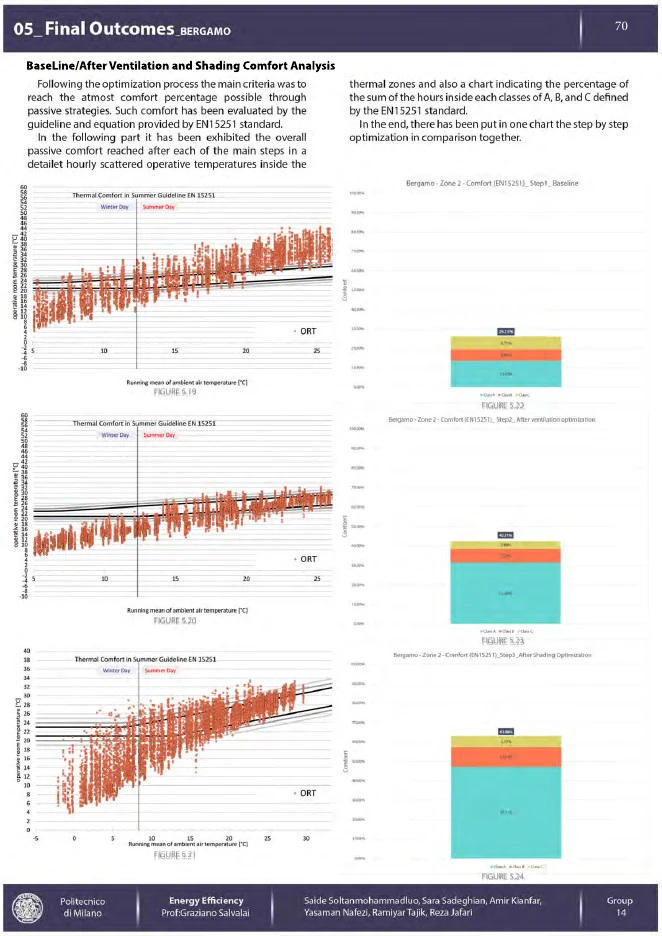

Corrected five-stage EN 15251:2007 adaptive temperature-band benchmark: inclusive Category II percentages are 26.00, 54.64, 69.92, 84.39 and 83.53, all divided by 5,688 climate-eligible modeled hours.
Retrospective assessment of the saved Zone 2 temperatures, using the preceding-day running mean with α = 0.8. Bars partition the 5,688 eligible hours into Category I, additional II, additional III, colder and warmer segments. Labels show the inclusive Category II percentage. The other 3,072 annual hours are unassessed. Methods and provenance · Source results (CSV).
Open image
Inclusive temperature-band counts and percentages of 5,688 climate-eligible modeled hours
Model stageCategory ICategory IICategory III
Baseline974 h 17.12%1,479 h 26.00%1,982 h 34.85%
Ventilation2,304 h 40.51%3,108 h 54.64%3,587 h 63.06%
Shading2,870 h 50.46%3,977 h 69.92%4,695 h 82.54%
Solar thermal3,780 h 66.46%4,800 h 84.39%5,288 h 92.97%
BIPV3,727 h 65.52%4,751 h 83.53%5,287 h 92.95%
