Design · Cultural architecture · Guilan University

Museum of Visual Art

An architectural-design project bringing exhibition, learning and public gathering into a wave- and sail-inspired museum through AutoCAD drawings, SketchUp models and Photoshop presentation.

The central void connects public and exhibition spaces and creates views between levels.
Diagram in text
Caspian references
Draw on waves and traditional sails.
Curved volumes
Develop the exhibition and public spaces in section.
Arrival and gathering
Connect the lobby, café and auditorium.
Gallery sequence
Use the central void and stairs to link levels.

Approach and contribution

30-second case brief

The project at a glance.

Question
A museum bringing exhibition, learning and public gathering together through a form inspired by Caspian waves and traditional sails.
Responsibility
Individual architectural design, drawings, modeling and visualization
Methods
AutoCAD drawings · SketchUp modeling · Photoshop presentation
Result
Wave- and sail-inspired architectural form · Three floor plans and sectional development

Project scope and responsibility

Context
Architectural Design III · Guilan University · Rasht
Role
Individual architectural design, drawings, modeling and visualization
Studio
Architectural Design III · Supervisor: Dr. Khakpour
Program
Galleries · Auditorium · Café · Library · Research and teaching spaces
Methods
AutoCAD drawings · SketchUp modeling · Photoshop presentation
Outputs
Site plan · Three floor plans · Sections · Structural concept · Interior and exterior renderings · Final poster

From Caspian waves to an architectural form

Developed as an individual Architectural Design III project at Guilan University, the Museum of Visual Art brings exhibition, learning and public gathering into one cultural building in Rasht. The design began with the waves of the Caspian Sea and the sails of traditional boats, translated into a sequence of rising and falling roof profiles.

The final exterior combines these curved surfaces with glazed end walls. Rather than leaving the idea as an isolated sculptural object, the site plan connects the museum to pedestrian approaches, planted areas and outdoor gathering spaces. The night view and site drawing show how the building’s silhouette and public setting were developed together.

The original night rendering makes the repeated roof profiles and glazed end walls legible.
The site plan coordinates approaches, planted edges, outdoor spaces and access around the museum.

Organizing exhibition, gathering and learning

The floor plans turn the formal idea into a program distributed across three levels. The ground floor brings together the entrance and lobby, auditorium, café and associated support rooms. Above it, a sequence of gallery spaces extends around the central void and connects to a media room.

The lower level accommodates a library, research and study spaces, a classroom, studios, a curator’s office and support functions. Reading the plans together shows how stairs, shared voids and connecting spaces organize movement between the public, exhibition and learning areas.

Ground floor: the entrance and shared circulation connect the auditorium and café wings.
First floor: galleries and a media room are arranged around shared circulation and the lobby void.
Lower level: the museum’s exhibition program is supported by research, teaching, studio and library spaces.

Making movement part of the museum experience

The shared interior gives visitors views between levels rather than treating each floor as a separate destination. Curved edges, stairs and openings around the central void connect the plan to a continuous spatial sequence. The lobby renderings test how visitors encounter artworks while moving through that shared space.

The section places these relationships beneath the rising roof profile. It shows the different room heights, intermediate floor and lower-level spaces, making the connection between the exterior form and the internal arrangement easier to read.

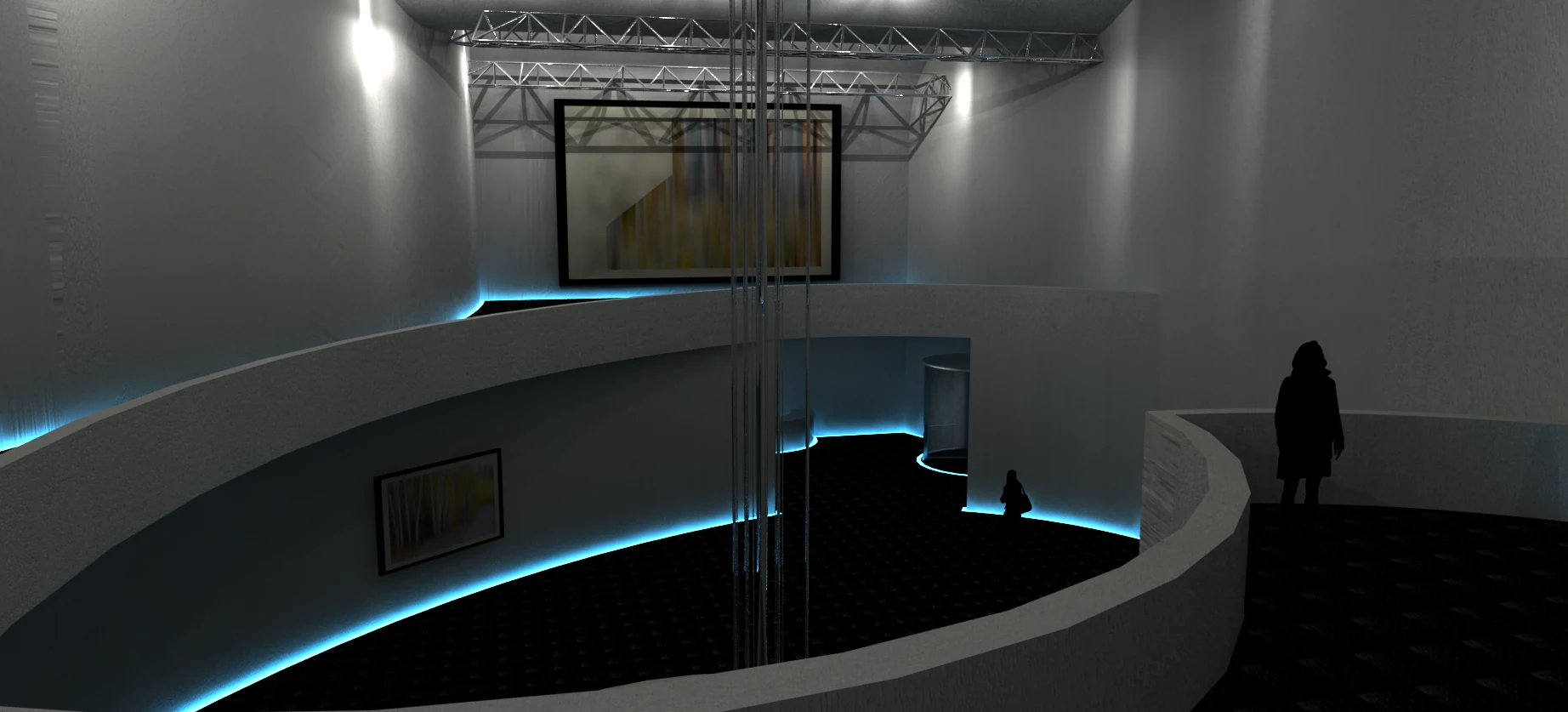

The lobby visualization studies sightlines across levels and the role of the central exhibition space.
The section connects the curved envelope to the museum’s floor levels and internal heights.

Different settings for art and public life

The gallery interior develops a more focused setting for viewing art. Dark surfaces and directed lighting emphasize the displayed works, while the curved wall carries the architectural language into the exhibition route. This contrasts with the brighter, more open shared lobby.

The café provides a separate social setting within the museum program. Its seating groups, long counter, timber finishes and ceiling elements were developed in a dedicated interior model. Together, the gallery and café views show how the same building supports both concentrated viewing and informal gathering.

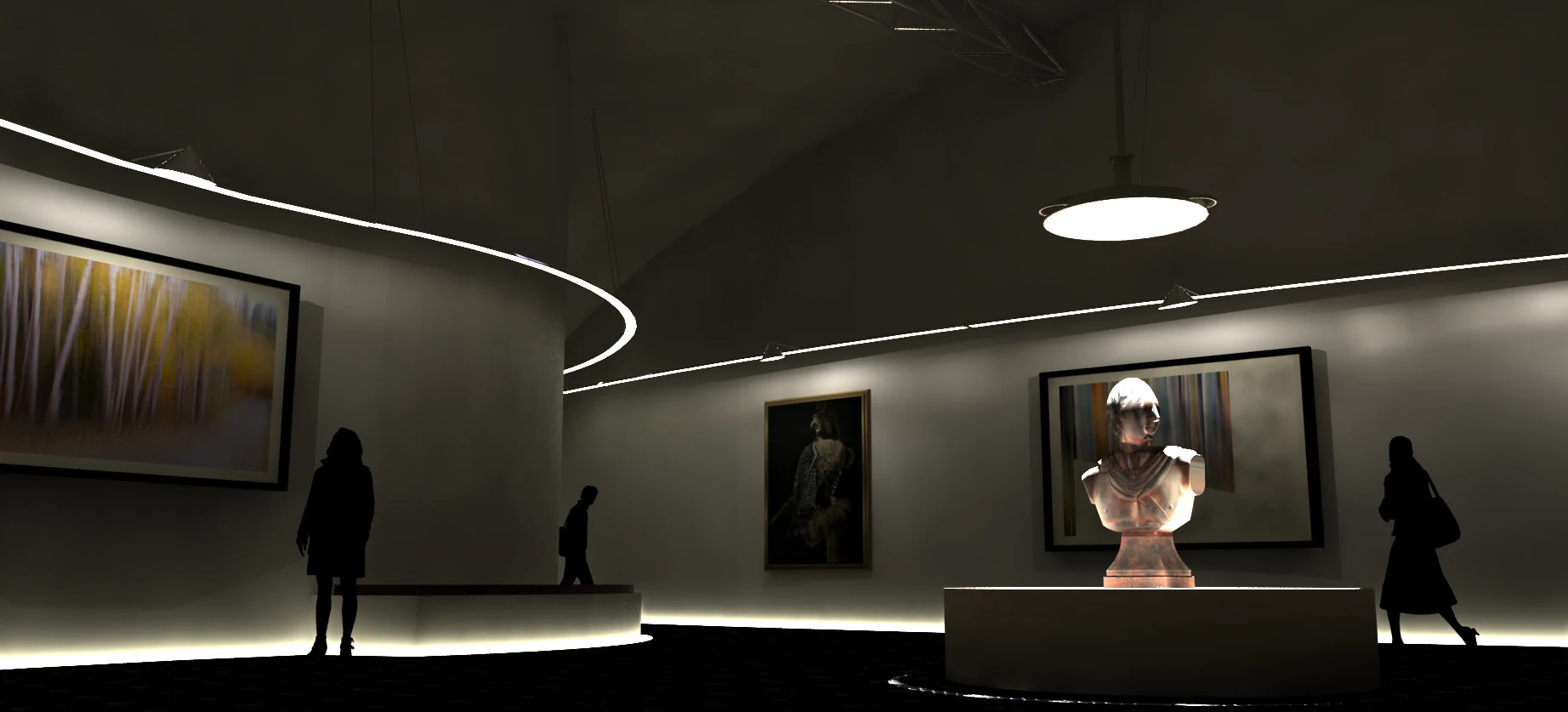

The gallery study uses focused lighting and a curved display wall to organize attention around the artworks.
The café model develops seating, the service counter and material character as part of the museum’s public program.

Relating the free-form envelope to its supports

A separate structural model explored the supporting arrangement beneath the curved envelope. Wall-like vertical elements and spanning members are organized around the floor openings and the main spaces, connecting the architectural form to a three-dimensional structural concept.

This study complements the plans and section: the drawings locate the rooms and circulation, while the model makes the supporting elements and openings visible without the exterior shell. The relationship between form, program and support was therefore developed through several coordinated representations.

The structural concept model reveals the supporting arrangement and floor openings beneath the architectural envelope.

The complete design proposal

The final proposal brings the wave- and sail-inspired form together with a three-level museum program, a shared interior sequence and distinct gallery and café settings. Its design record includes the site and floor plans, sections, structural concept and detailed interior and exterior visualizations.

The original 2016 poster assembles those outputs in one composition, retaining the concept notes and relationships between drawings and rendered views. The complete poster can be opened at its original resolution.

Original final poster, 2016: concept, drawings, structural study and rendered views presented together. Open the complete PNG using the project-resource link.
