Vitality Chain

An urban-landscape proposal reconnecting Lecco along the Caldone corridor through SWOT analysis, opportunity and constraint mapping, masterplanning and flood-aware sections.

The Caldone connects the four destinations through walking and cycling routes and flood-aware stream edges.
Diagram in text
City edge
Social and cultural spaces near the urban center.
Education hub
Learning activities at the corridor’s midpoint.
Mountain activities
Routes and spaces for outdoor recreation.
Upper green zone
Biodiversity and links to the mountain landscape.

Approach and contribution

30-second case brief

The project at a glance.

Question
A river-led masterplan connecting Lecco’s urban center, the Caldone corridor, and the mountain landscape through mobility, public programs, biodiversity, and flood-aware design.
Responsibility
Collaborative urban analysis, strategic planning, program development, and representation
Methods
Caldone torrent corridor · Lecco, Italy
Result
Four connected activity poles · Multi-modal corridor strategy

Project scope and responsibility

Context
Politecnico di Milano · Polo Territoriale di Lecco
Role
Collaborative urban analysis, strategic planning, program development, and representation
Site
Caldone torrent corridor · Lecco, Italy
Scale
Territorial corridor · four activity poles · stream-edge interventions
Team
Eight-person Urban Design Studio group

The Caldone as civic infrastructure

Vitality Chain begins with a neglected but continuous element: the Caldone torrent. The corridor crosses Lecco from the mountain landscape through transitional neighborhoods toward the compact city and Lake Como. The proposal treats that line as civic infrastructure capable of reconnecting public life, movement, ecology, and tourism rather than as a leftover edge.

Opportunity and constraint mapping

The analysis combined greenery and habitat studies with accessibility, public services, transformation areas, mobility, and flood risk. Opportunity mapping revealed links to existing lakefront cycling routes, mountain trails, schools, and cultural destinations. Constraint mapping made the counterforces visible: high-traffic roads, discontinuous pedestrian routes, industrial noise and pollution, the torrent as a physical barrier, and rapid flood conditions.

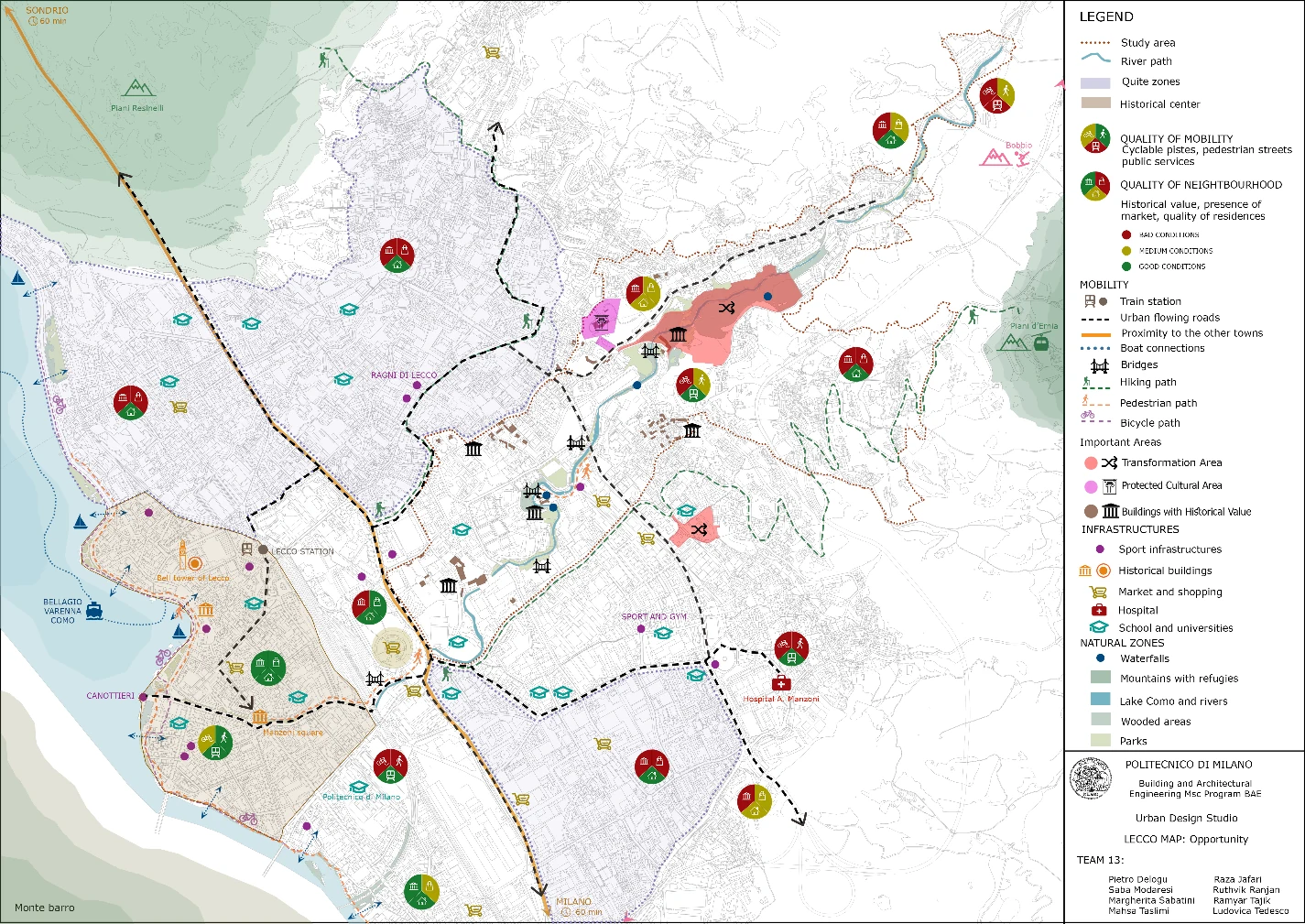

The opportunity map identifies regional paths, public services, transformation areas, and the potential connection between lakefront and mountain routes.

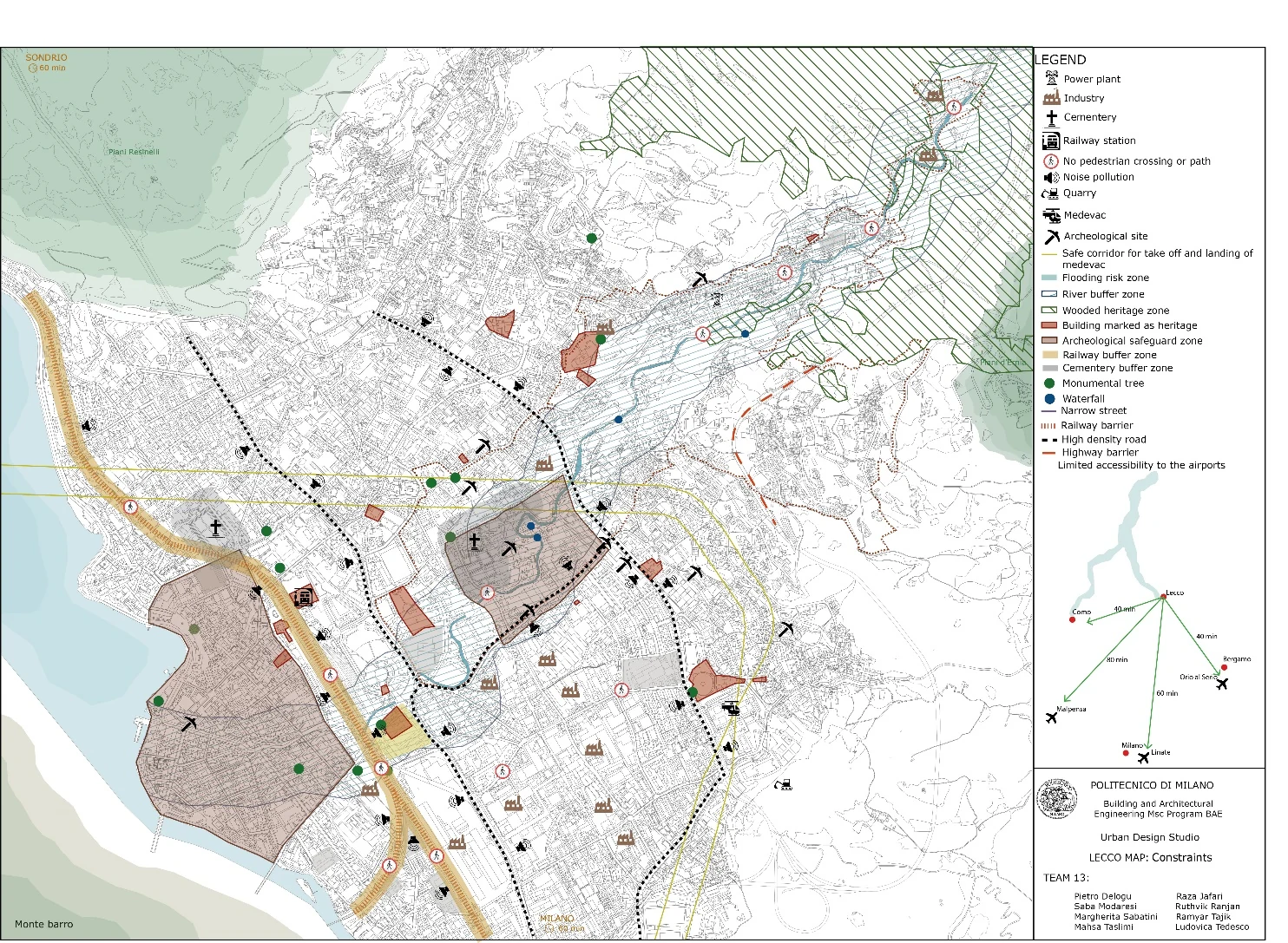

The constraints map records flood exposure, high-traffic barriers, incomplete pedestrian access, industrial uses, and protected landscapes.

Four connected poles

The masterplan organizes the corridor around four linked poles: a social and cultural zone near the city, an educational hub at the center, a mountain-activity zone, and a greenery and biodiversity zone at the upper end. Pedestrian, cycling, mountain-bike, hiking, and existing road networks connect these destinations, with the river serving as the common spatial thread.

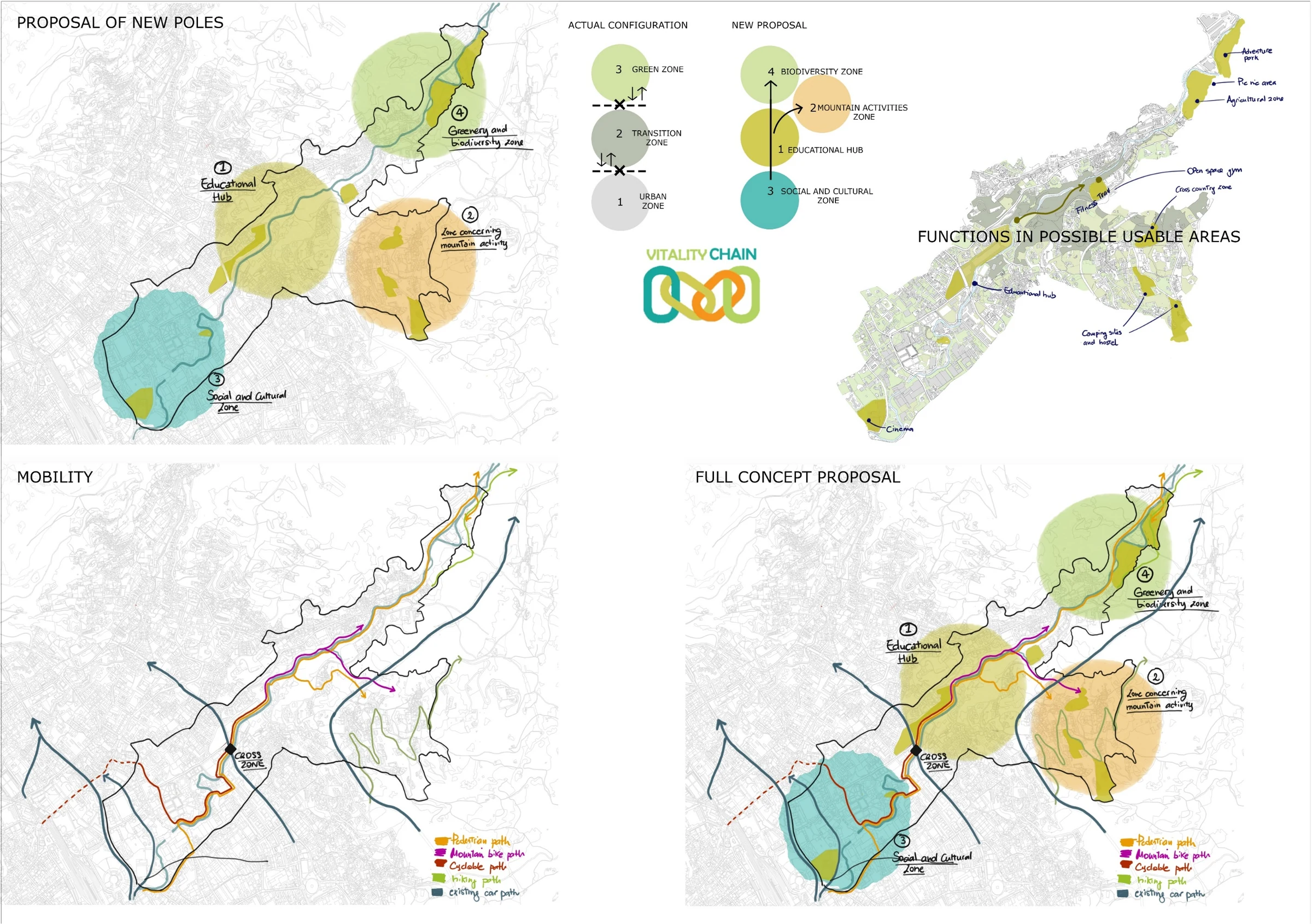

The report masterplan connects four program poles with pedestrian, cycle, mountain-bike, hiking, and existing road networks along the Caldone corridor.

Public programs along the river

The central intervention combines the educational hub with a flexible public space described in the report as Lecco’s Living Room. Seasonal workshops, school activities, open-air events, social uses, and access to mountain programs give the corridor reasons to remain active across ages and times of day. Stream-edge paths turn unused or abandoned land into longitudinal and cross-corridor connections.

The educational hub brings learning and community activity directly to the river corridor.
Lecco’s Living Room is imagined as a flexible social terrace where the city meets the water.

Stream edge and flood response

The stream section coordinates pedestrian, cycling, and green paths with retained topography and new public uses. Because the Caldone can rise quickly, the report also explores debris interception, overflow relief, and connections to underground water-management channels. These measures are presented as concept-stage urban-design proposals that would require hydrologic and structural engineering before implementation.

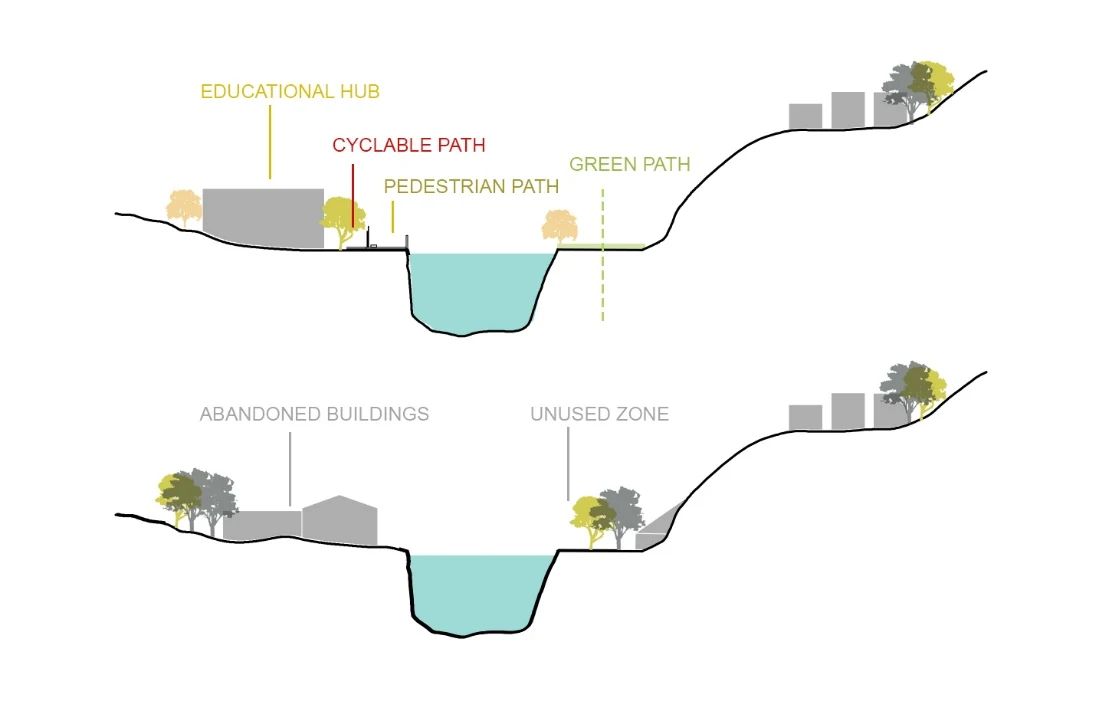

A before-and-after section shows how the stream edge can accommodate public programs and separate low-mobility routes.

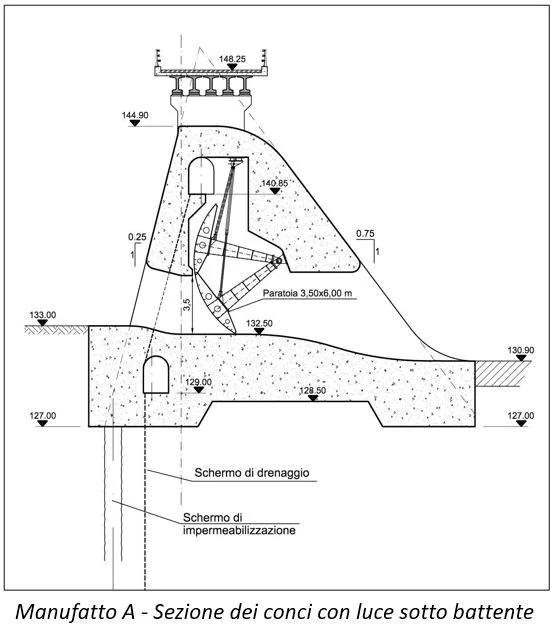

The report pairs debris control with an overflow and drainage concept at the stream edge.

Outcome and project scope

The result is an unbuilt collaborative academic proposal that moves from territorial evidence to corridor strategy, program distribution, public-space concepts, and flood-aware details. The downloadable studio report preserves the complete knowledge, synthesis, concept, and masterplan sequence behind the selected portfolio material.

The complete project record

Full book

Read the complete report, thesis, or presentation here. Use the page controls to explore the original figures and methods.

Download PDF Open full PDF

Complete urban-design report

Vitality Chain - Final Report

The original document, page by page.
